Thrust Screws - Threaded Design - Sof-Top Urethane Surface Cone - Inch (TST-FC-UR)
TST-0370-FC-35UR

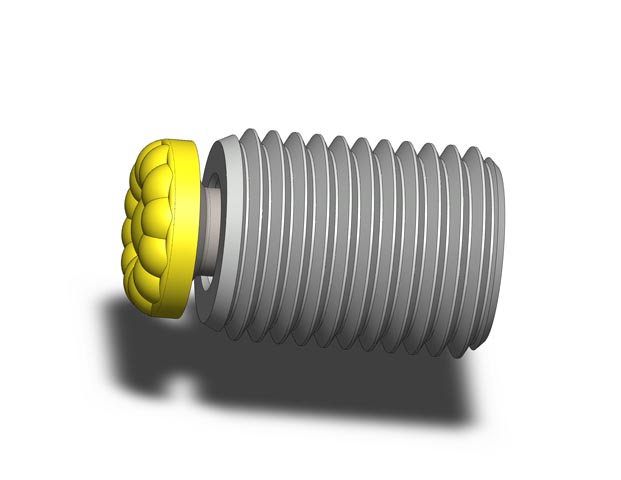

Threaded Thrust Screw - Sof-Top - 3/8-16 X 1/2 - 35 Dur

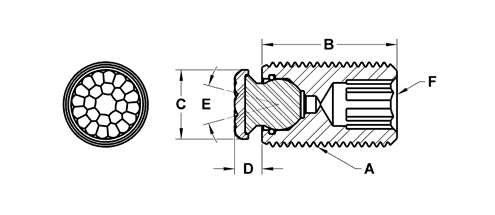

| Part # | A Thread | B Thread Length in | C Contact Diameter in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Diameter in | Durometer Shore A | Urethane Thickness in | Load Compression lbs | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TST-0230-FC-35UR | 3/8-24 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0230-FC-60UR | 3/8-24 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0230-FC-80UR | 3/8-24 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0231-FC-35UR | 3/8-24 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0231-FC-60UR | 3/8-24 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0231-FC-80UR | 3/8-24 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0231X2-FC-35UR | 3/8-24 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0231X2-FC-60UR | 3/8-24 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0231X2-FC-80UR | 3/8-24 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0231X3-FC-35UR | 3/8-24 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0231X3-FC-60UR | 3/8-24 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0231X3-FC-80UR | 3/8-24 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0370-FC-35UR | 3/8-16 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0370-FC-60UR | 3/8-16 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0370-FC-80UR | 3/8-16 | 1/2 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0375-FC-35UR | 3/8-16 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0375-FC-60UR | 3/8-16 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0375-FC-80UR | 3/8-16 | 1 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0375X2-FC-35UR | 3/8-16 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0375X2-FC-60UR | 3/8-16 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0375X2-FC-80UR | 3/8-16 | 2 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0375X3-FC-35UR | 3/8-16 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| TST-0375X3-FC-60UR | 3/8-16 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| TST-0375X3-FC-80UR | 3/8-16 | 3 | .315 | .143 | 28 | 3/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| TST-0500-FC-35UR | 1/2-20 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0500-FC-60UR | 1/2-20 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0500-FC-80UR | 1/2-20 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0500X2-FC-35UR | 1/2-20 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0500X2-FC-60UR | 1/2-20 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0500X2-FC-80UR | 1/2-20 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0500X3-FC-35UR | 1/2-20 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0500X3-FC-60UR | 1/2-20 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0500X3-FC-80UR | 1/2-20 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0503-FC-35UR | 1/2-20 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0503-FC-60UR | 1/2-20 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0503-FC-80UR | 1/2-20 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0510-FC-35UR | 1/2-13 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0510-FC-60UR | 1/2-13 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0510-FC-80UR | 1/2-13 | 1 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0510X2-FC-35UR | 1/2-13 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0510X2-FC-60UR | 1/2-13 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0510X2-FC-80UR | 1/2-13 | 2 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0510X3-FC-35UR | 1/2-13 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0510X3-FC-60UR | 1/2-13 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0510X3-FC-80UR | 1/2-13 | 3 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0513-FC-35UR | 1/2-13 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| TST-0513-FC-60UR | 1/2-13 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| TST-0513-FC-80UR | 1/2-13 | 3/4 | .394 | .174 | 28 | 1/4 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| TST-0620-FC-35UR | 5/8-18 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0620-FC-60UR | 5/8-18 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0620-FC-80UR | 5/8-18 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0620X2-FC-35UR | 5/8-18 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0620X2-FC-60UR | 5/8-18 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0620X2-FC-80UR | 5/8-18 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0620X3-FC-35UR | 5/8-18 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0620X3-FC-60UR | 5/8-18 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0620X3-FC-80UR | 5/8-18 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0625-FC-35UR | 5/8-11 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0625-FC-60UR | 5/8-11 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0625-FC-80UR | 5/8-11 | 1 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0625X2-FC-35UR | 5/8-11 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0625X2-FC-60UR | 5/8-11 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0625X2-FC-80UR | 5/8-11 | 2 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0625X3-FC-35UR | 5/8-11 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| TST-0625X3-FC-60UR | 5/8-11 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| TST-0625X3-FC-80UR | 5/8-11 | 3 | .512 | .205 | 28 | 5/16 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| TST-0750-FC-35UR | 3/4-16 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0750-FC-60UR | 3/4-16 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| TST-0750-FC-80UR | 3/4-16 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-0750X2-FC-35UR | 3/4-16 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0750X2-FC-60UR | 3/4-16 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| TST-0750X2-FC-80UR | 3/4-16 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-0750X3-FC-35UR | 3/4-16 | 3 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0750X3-FC-80UR | 3/4-16 | 3 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-0755-FC-35UR | 3/4-10 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0755-FC-60UR | 3/4-10 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| TST-0755-FC-80UR | 3/4-10 | 1 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-0755X2-FC-35UR | 3/4-10 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0755X2-FC-60UR | 3/4-10 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| TST-0755X2-FC-80UR | 3/4-10 | 2 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-0755X3-FC-35UR | 3/4-10 | 3 | .630 | .205 | 28 | 3/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| TST-0755X3-FC-60UR | 3/4-10 | 3 | .630 | .205 | 28 | 3/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| TST-0755X3-FC-80UR | 3/4-10 | 3 | .630 | .205 | 28 | 3/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| TST-1108-FC-35UR | 1"-8 | 1 | .827 | .236 | 32 | 3/8 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| TST-1108-FC-60UR | 1"-8 | 1 | .827 | .236 | 32 | 3/8 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| TST-1108-FC-80UR | 1"-8 | 1 | .827 | .236 | 32 | 3/8 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| TST-1108X2-FC-35UR | 1"-8 | 2 | .827 | .236 | 32 | 3/8 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| TST-1108X2-FC-60UR | 1"-8 | 2 | .827 | .236 | 32 | 3/8 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| TST-1108X2-FC-80UR | 1"-8 | 2 | .827 | .236 | 32 | 3/8 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| TST-1108X3-FC-35UR | 1"-8 | 3 | .827 | .236 | 32 | 3/8 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| TST-1108X3-FC-60UR | 1"-8 | 3 | .827 | .236 | 32 | 3/8 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| TST-1108X3-FC-80UR | 1"-8 | 3 | .827 | .236 | 32 | 3/8 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| TST-1114-FC-35UR | 1"-14 | 1 | .906 | .236 | 32 | 3/8 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| TST-1114-FC-60UR | 1"-14 | 1 | .906 | .236 | 32 | 3/8 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| TST-1114-FC-80UR | 1"-14 | 1 | .906 | .236 | 32 | 3/8 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR | |
| TST-1114X2-FC-35UR | 1"-14 | 2 | .906 | .236 | 32 | 3/8 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| TST-1114X2-FC-60UR | 1"-14 | 2 | .906 | .236 | 32 | 3/8 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| TST-1114X2-FC-80UR | 1"-14 | 2 | .906 | .236 | 32 | 3/8 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR | |
| TST-1114X3-FC-35UR | 1"-14 | 3 | .906 | .236 | 32 | 3/8 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| TST-1114X3-FC-60UR | 1"-14 | 3 | .906 | .236 | 32 | 3/8 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| TST-1114X3-FC-80UR | 1"-14 | 3 | .906 | .236 | 32 | 3/8 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR |
