Quick Release Ball Lock Pin - Dome Handle - 300 Series SS Shank - 300 Series SS Handle - Inch (DCCS)



DCCS-25-050

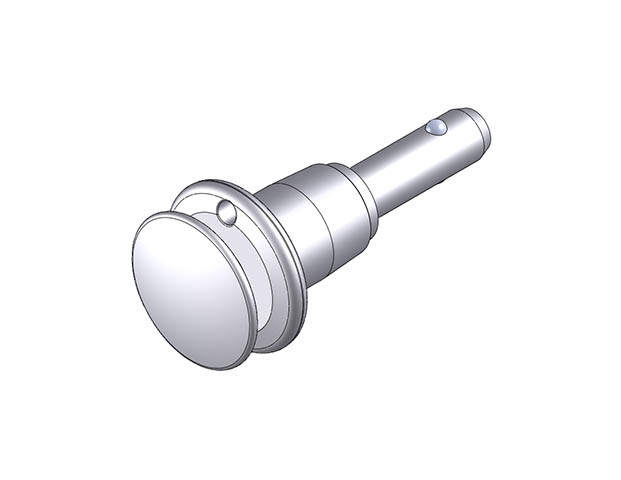

Dome Handle Pin - 300 Series SS Shank - 1/4 in Dia X .50 in

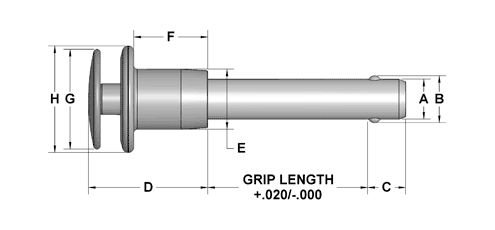

Part # Nominal Diameter
in		A
Max.
in		A
Min.
in		 Grip Length
in		B

in		C

in		D

in		E

in		F

in		G

in		H

in
DCCS-25-0501/4.2485.2470.50.289.2901.00.47.63.75.81
