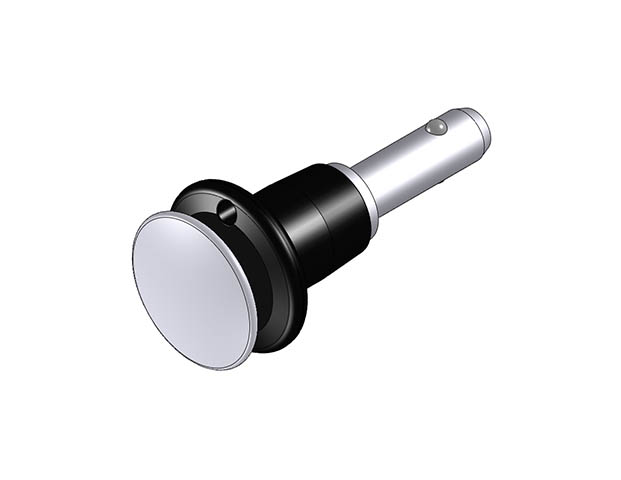

Quick Release Ball Lock Pin - Dome Handle - 300 Series SS Shank - Aluminum Handle - Inch (DACS)



DACS-25-050
Dome Handle Pin - 300 Series SS Shank - 1/4 in Dia X .50 in

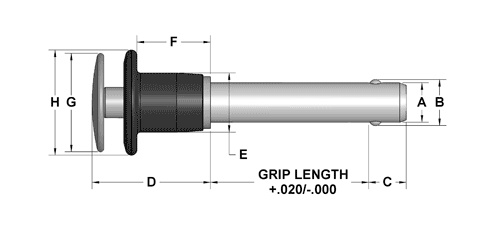

Part # Nominal Length
in		A
Max.
in		A
Min.
in		 Grip Length
in		B

in		C

in		D

in		E

in		F

in		G

in		H

in
DACS-25-0501/4.2485.2470.50.289.2901.00.47.63.75.81
DACS-25-0751/4.2485.2470.75.289.2901.00.47.63.75.81
DACS-25-1001/4.2485.24701.00.289.2901.00.47.63.75.81
DACS-25-1251/4.2485.24701.25.289.2901.00.47.63.75.81
DACS-25-1501/4.2485.24701.50.289.2901.00.47.63.75.81
DACS-25-1751/4.2485.24701.75.289.2901.00.47.63.75.81
DACS-25-2001/4.2485.24702.00.289.2901.00.47.63.75.81
DACS-25-2501/4.2485.24702.50.289.2901.00.47.63.75.81
DACS-25-3001/4.2485.24703.00.289.2901.00.47.63.75.81
DACS-25-3501/4.2485.24703.50.289.2901.00.47.63.75.81
DACS-25-4001/4.2485.24704.00.289.2901.00.47.63.75.81
DACS-31-0505/16.3110.3095.50.375.3301.00.47.63.75.81
DACS-31-0755/16.3110.3095.75.375.3301.00.47.63.75.81
DACS-31-1005/16.3110.30951.00.375.3301.00.47.63.75.81
DACS-31-1255/16.3110.30951.25.375.3301.00.47.63.75.81
DACS-31-1505/16.3110.30951.50.375.3301.00.47.63.75.81
DACS-31-1755/16.3110.30951.75.375.3301.00.47.63.75.81
DACS-31-2005/16.3110.30952.00.375.3301.00.47.63.75.81
DACS-31-2505/16.3110.30952.50.375.3301.00.47.63.75.81
DACS-31-3005/16.3110.30953.00.375.3301.00.47.63.75.81
DACS-31-3505/16.3110.30953.50.375.3301.00.47.63.75.81
DACS-31-4005/16.3110.30954.00.375.3301.00.47.63.75.81
DACS-37-0503/8.3735.3720.50.440.3651.12.56.70.9321.00
DACS-37-0753/8.3735.3720.75.440.3651.12.56.70.9321.00
DACS-37-1003/8.3735.37201.00.440.3651.12.56.70.932.440
DACS-37-1253/8.3735.37201.25.440.3651.12.56.70.9321.00
DACS-37-1503/8.3735.37201.50.440.3651.12.56.70.9321.00
DACS-37-1753/8.3735.37201.75.440.3651.12.56.70.9321.00
DACS-37-2003/8.3735.37202.00.440.3651.12.56.70.9321.00
DACS-37-2503/8.3735.37202.50.440.3651.12.56.70.9321.00
DACS-37-3003/8.3735.37203.00.440.3651.12.56.70.9321.00
DACS-37-3503/8.3735.37203.50.440.3651.12.56.70.9321.00
DACS-37-4003/8.3735.37204.00.440.3651.12.56.70.9321.00
DACS-50-1001/2.4985.49701.00.594.4601.41.72.851.301.37
DACS-50-1251/2.4985.49701.25.594.4601.41.72.851.301.37
DACS-50-1501/2.4985.49701.50.594.4601.41.72.851.301.37
DACS-50-1751/2.4985.49701.75.594.4601.41.72.851.301.37
DACS-50-2001/2.4985.49702.00.594.4601.41.72.851.301.37
DACS-50-2501/2.4985.49702.50.594.4601.41.72.851.301.37
DACS-50-3001/2.4985.49703.00.594.4601.41.72.851.301.37
DACS-50-3501/2.4985.49703.50.594.4601.41.72.851.301.37
DACS-50-4001/2.4985.49704.00.594.4601.41.72.851.301.37
DACS-50-4501/2.4985.49704.50.594.4601.41.72.851.301.37
DACS-50-5001/2.4985.49705.00.594.4601.41.72.851.301.37
DACS-50-5501/2.4985.49705.50.594.4601.41.72.851.301.37
DACS-50-6001/2.4985.49706.00.594.4601.41.72.851.301.37
