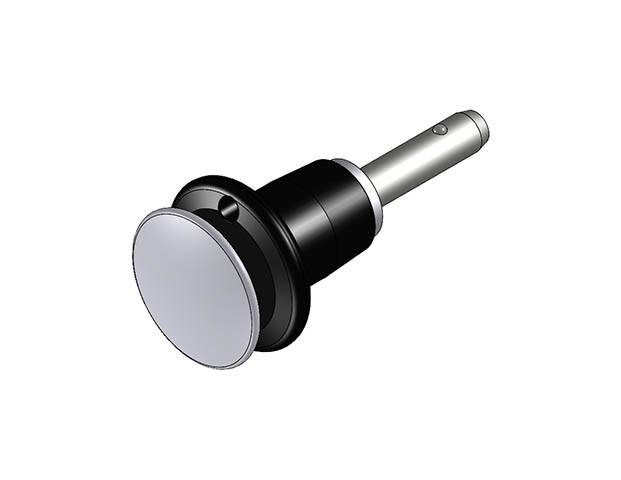

Quick Release Ball Lock Pin - Dome Handle - 17-4 SS Shank - Aluminum Handle - Inch (DACH)
DACH-18-050
Dome Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in

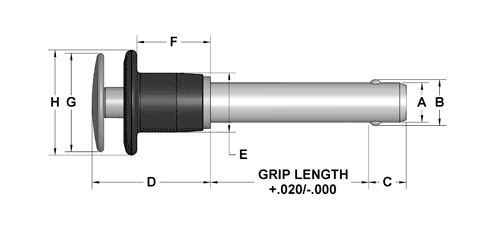

| Part # | Nominal Diameter in | A Max. in | A Min. in | Grip Length in | B in | C in | D in | E in | F in | G in | H in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DACH-18-050 | 3/16 | .1885 | .1870 | .50 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-075 | 3/16 | .1885 | .1870 | .75 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-100 | 3/16 | .1885 | .1870 | 1.00 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-125 | 3/16 | .1885 | .1870 | 1.25 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-150 | 3/16 | .1885 | .1870 | 1.50 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-175 | 3/16 | .1885 | .1870 | 1.75 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-200 | 3/16 | .1885 | .1870 | 2.00 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-250 | 3/16 | .1885 | .1870 | 2.50 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-300 | 3/16 | .1885 | .1870 | 3.00 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-350 | 3/16 | .1885 | .1870 | 3.50 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-18-400 | 3/16 | .1885 | .1870 | 4.00 | .220 | .260 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-050 | 1/4 | .2485 | .2470 | .50 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-075 | 1/4 | .2485 | .2470 | .75 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-100 | 1/4 | .2485 | .2470 | 1.00 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-125 | 1/4 | .2485 | .2470 | 1.25 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-150 | 1/4 | .2485 | .2470 | 1.50 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-175 | 1/4 | .2485 | .2470 | 1.75 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-200 | 1/4 | .2485 | .2470 | 2.00 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-250 | 1/4 | .2485 | .2470 | 2.50 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-300 | 1/4 | .2485 | .2470 | 3.00 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-350 | 1/4 | .2485 | .2470 | 3.50 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-25-400 | 1/4 | .2485 | .2470 | 4.00 | .289 | .290 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-050 | 5/16 | .3110 | .3095 | .50 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-075 | 5/16 | .3110 | .3095 | .75 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-100 | 5/16 | .3110 | .3095 | 1.00 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-125 | 5/16 | .3110 | .3095 | 1.25 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-150 | 5/16 | .3110 | .3095 | 1.50 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-175 | 5/16 | .3110 | .3095 | 1.75 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-200 | 5/16 | .3110 | .3095 | 2.00 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-250 | 5/16 | .3110 | .3095 | 2.50 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-300 | 5/16 | .3110 | .3095 | 3.00 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-350 | 5/16 | .3110 | .3095 | 3.50 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-31-400 | 5/16 | .3110 | .3095 | 4.00 | .375 | .330 | 1.00 | .47 | .63 | .75 | .81 | |
| DACH-37-050 | 3/8 | .3735 | .3720 | .50 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-075 | 3/8 | .3735 | .3720 | .75 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-100 | 3/8 | .3735 | .3720 | 1.00 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-125 | 3/8 | .3735 | .3720 | 1.25 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-150 | 3/8 | .3735 | .3720 | 1.50 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-175 | 3/8 | .3735 | .3720 | 1.75 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-200 | 3/8 | .3735 | .3720 | 2.00 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-250 | 3/8 | .3735 | .3720 | 2.50 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-300 | 3/8 | .3735 | .3720 | 3.00 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-350 | 3/8 | .3735 | .3720 | 3.50 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-37-400 | 3/8 | .3735 | .3720 | 4.00 | .440 | .365 | 1.12 | .56 | .70 | .932 | 1.00 | |
| DACH-50-100 | 1/2 | .4985 | .4970 | 1.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-125 | 1/2 | .4985 | .4970 | 1.25 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-150 | 1/2 | .4985 | .4970 | 1.50 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-175 | 1/2 | .4985 | .4970 | 1.75 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-200 | 1/2 | .4985 | .4970 | 2.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-250 | 1/2 | .4985 | .4970 | 2.50 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-300 | 1/2 | .4985 | .4970 | 3.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-350 | 1/2 | .4985 | .4970 | 3.50 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-400 | 1/2 | .4985 | .4970 | 4.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-450 | 1/2 | .4985 | .4970 | 4.50 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-500 | 1/2 | .4985 | .4970 | 5.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-550 | 1/2 | .4985 | .4970 | 5.50 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-50-600 | 1/2 | .4985 | .4970 | 6.00 | .594 | .460 | 1.41 | .72 | .85 | 1.30 | 1.37 | |
| DACH-62-150 | 5/8 | .6235 | .6220 | 1.50 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-175 | 5/8 | .6235 | .6220 | 1.75 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-200 | 5/8 | .6235 | .6220 | 2.00 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-250 | 5/8 | .6235 | .6220 | 2.50 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-300 | 5/8 | .6235 | .6220 | 3.00 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-350 | 5/8 | .6235 | .6220 | 3.50 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-400 | 5/8 | .6235 | .6220 | 4.00 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-450 | 5/8 | .6235 | .6220 | 4.50 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-500 | 5/8 | .6235 | .6220 | 5.00 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-550 | 5/8 | .6235 | .6220 | 5.50 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 | |
| DACH-62-600 | 5/8 | .6235 | .6220 | 6.00 | .750 | .580 | 1.84 | .94 | 1.10 | 1.68 | 1.75 |
