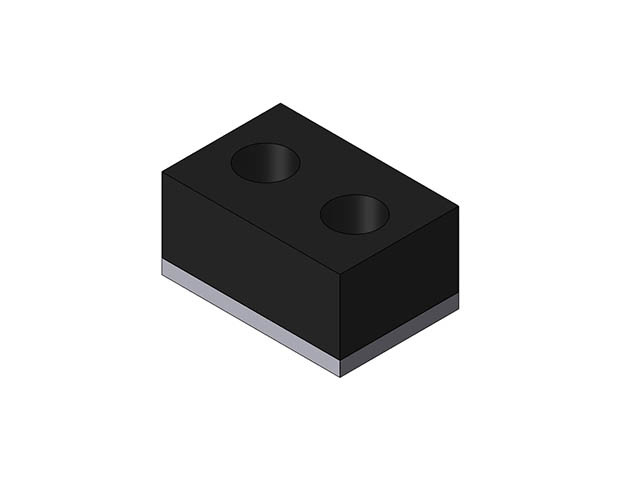

Bumpers - Custom Cut - Aluminum Plate - C'Bore Mount (RB)
RB-241612-142
Custom Cut Bumper - 80 Dur Neoprene w/ Aluminum Plate - 1-1/2 in X 1 in X 3/4 in

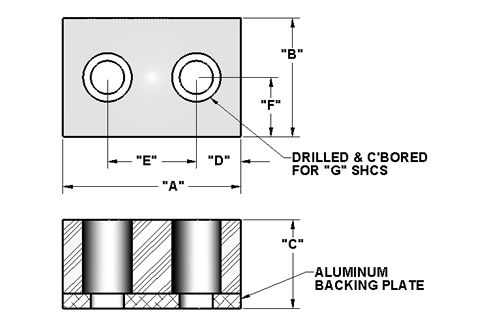

| Part # | A in | B in | C in | D in | E in | F in | G in | Durometer Shore A | Material |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RB-240812-142-12 | 1-1/2 | 1/2 | 3/4 | 1/4 | 80 | Neoprene | ||||
| RB-241612-142 | 1-1/2 | 1 | 3/4 | 3/8 | 3/4 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-242416-142 | 1-1/2 | 1-1/2 | 1 | 3/8 | 3/4 | 3/4 | 1/4 | 80 | Neoprene | |
| RB-281628-142 | 1-3/4 | 1 | 1-3/4 | 3/8 | 1 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-321608-142 | 2 | 1 | 1/2 | 3/8 | 1-1/4 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-321612-142 | 2 | 1 | 3/4 | 3/8 | 1-1/4 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-321616-142 | 2 | 1 | 1 | 3/8 | 1-1/4 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-321624-142 | 2 | 1 | 1-1/2 | 3/8 | 1-1/4 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-323216-142 | 2 | 2 | 1 | 3/8 | 1-1/4 | 1 | 1/4 | 80 | Neoprene | |
| RB-402012-142 | 2-1/2 | 1-1/4 | 3/4 | 3/8 | 1-3/4 | 5/8 | 1/4 | 80 | Neoprene | |
| RB-402016-142 | 2-1/2 | 1-1/4 | 1 | 3/8 | 1-3/4 | 5/8 | 1/4 | 80 | Neoprene | |
| RB-402024-142 | 2-1/2 | 1-1/4 | 1-1/2 | 3/8 | 1-3/4 | 5/8 | 1/4 | 80 | Neoprene | |
| RB-404016-144 | 2-1/2 | 2-1/2 | 1 | 1/2 | 1-1/2 | 1-1/4 | 1/4 | 80 | Neoprene | |
| RB-481628-382 | 3 | 1 | 1-3/4 | 5/8 | 1-3/4 | 1/2 | 3/8 | 80 | Neoprene | |
| RB-482412-142 | 3 | 1-1/2 | 3/4 | 1/2 | 2 | 3/4 | 1/4 | 80 | Neoprene | |
| RB-482416-142 | 3 | 1-1/2 | 1 | 1/2 | 2 | 3/4 | 1/4 | 80 | Neoprene | |
| RB-482416-5162 | 3 | 1-1/2 | 1 | 1/2 | 2 | 3/4 | 5/16 | 80 | Neoprene | |
| RB-482424-142 | 3 | 1-1/2 | 1-1/2 | 1/2 | 2 | 3/4 | 1/4 | 80 | Neoprene | |
| RB-484824-144 | 3 | 3 | 1-1/2 | 1/2 | 2 | 1-1/2 | 1/4 | 80 | Neoprene | |
| RB-641612-142 | 4 | 1 | 3/4 | 1-1/2 | 1 | 1/2 | 1/4 | 80 | Neoprene | |
| RB-646424-144 | 4 | 4 | 1-1/2 | 1/2 | 3 | 2 | 1/4 | 80 | Neoprene |
CUSTOM CUT BUMPERS - steel and aluminum plate options.
CUSTOM CUT BUMPERS can be cut to any shape to meet application needs.
