Grippers - Threaded Adjustable - Carbide Tipped - Diamond Serration - Metric (MPG)
MPG-10150

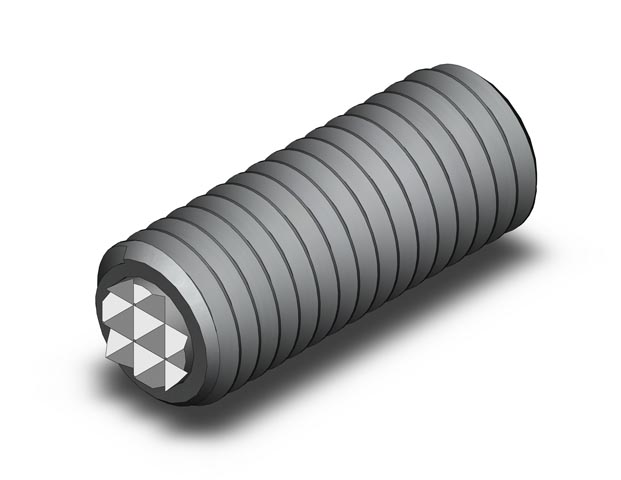

MPG Adjustable Gripper - M10 X 1.50 X 25 mm - Extra Fine

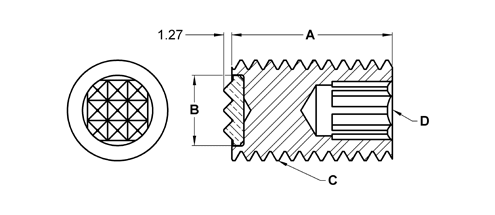

| Part # | A Thread Length in | B Contact Diameter in | C Thread - Mounting | D Int Hex in | Tooth Pattern |
|
|---|---|---|---|---|---|---|
| MPG-10150 | 25 | 1/4 | M10x1.50 | 5 | EF | |
| MPG-10150X50 | 50 | 1/4 | M10x1.50 | 5 | EF | |
| MPG-12175 | 25 | 5/16 | M12x1.75 | 6 | EF | |
| MPG-12175-4 | 25 | 5/16 | M12x1.75 | 6 | 4 Point | |
| MPG-12175X50 | 50 | 5/16 | M12x1.75 | 6 | EF | |
| MPG-12175X50-4 | 50 | 5/16 | M12x1.75 | 6 | 4 Point | |
| MPG-16200 | 25 | 7/16 | M16x2.00 | 8 | Fine | |
| MPG-16200-4 | 25 | 7/16 | M16x2.00 | 8 | 4 Point | |
| MPG-16200X50 | 50 | 7/16 | M16x2.00 | 8 | Fine | |
| MPG-16200X50-4 | 50 | 7/16 | M16x2.00 | 8 | 4 Point | |
| MPG-20250 | 25 | 1/2 | M20x2.50 | 10 | Fine | |
| MPG-20250-4 | 25 | 1/2 | M20x2.50 | 10 | 4 Point | |
| MPG-20250X50 | 50 | 1/2 | M20x2.50 | 10 | Fine | |
| MPG-20250X50-4 | 50 | 1/2 | M20x2.50 | 10 | 4 Point |
