Finned Shaft Drive Rollers - Steel Insert - 3/4 in I.D. - Inch
RR-9250-2-20-EX750

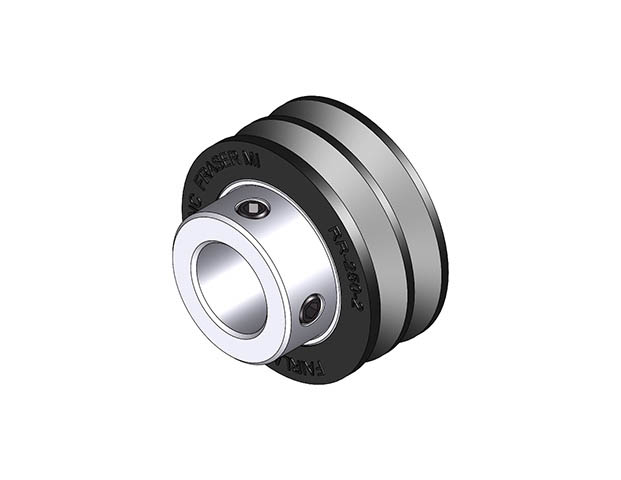

Finned Roller - 3/4 in Shaft Drive - 20 Dur Neoprene - 2.00 in Dia X 0.92 in Wide

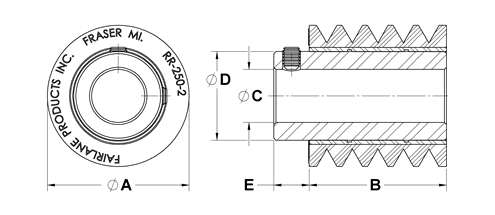

| Part # | A in | B in | C in | D in | E in | Material | Durometer Shore A | No. of Fins |
|
|---|---|---|---|---|---|---|---|---|---|
| RR-250-20-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 20 | 6 | |
| RR-250-20W-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 20 | 6 | |
| RR-250-2-20-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 20 | 6 | |
| RR-250-2-20W-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 20 | 6 | |
| RR-250-2-35-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 35 | 6 | |
| RR-250-2-35UR-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 35 | 6 | |
| RR-250-2-35W-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 35 | 6 | |
| RR-250-2-60-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 60 | 6 | |
| RR-250-2-60UR-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 60 | 6 | |
| RR-250-2-60W-EX750 | 2.00 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 60 | 6 | |
| RR-250-35-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 35 | 6 | |
| RR-250-35UR-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 35 | 6 | |
| RR-250-35W-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 35 | 6 | |
| RR-250-60-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 60 | 6 | |
| RR-250-60UR-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 60 | 6 | |
| RR-250-60W-EX750 | 2.50 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 60 | 6 | |
| RR-667-35-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 35 | 8 | |
| RR-667-35UR-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 35 | 8 | |
| RR-667-35W-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 35 | 8 | |
| RR-667-60-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Neoprene | 60 | 8 | |
| RR-667-60UR-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Urethane | 60 | 8 | |
| RR-667-60W-EX750 | 4.00 | 1.94 | .751/.756 | 1.25 | .50 | Nitrile | 60 | 8 | |
| RR-9250-20-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 20 | 3 | |
| RR-9250-20W-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 20 | 3 | |
| RR-9250-2-20-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 20 | 3 | |
| RR-9250-2-20W-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 20 | 3 | |
| RR-9250-2-35-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 35 | 3 | |
| RR-9250-2-35UR-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Urethane | 35 | 3 | |
| RR-9250-2-35W-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 35 | 3 | |
| RR-9250-2-60-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 60 | 3 | |
| RR-9250-2-60UR-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Urethane | 60 | 3 | |
| RR-9250-2-60W-EX750 | 2.00 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 60 | 3 | |
| RR-9250-35-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 35 | 3 | |
| RR-9250-35UR-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Urethane | 35 | 3 | |
| RR-9250-35W-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 35 | 3 | |
| RR-9250-60-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Neoprene | 60 | 3 | |
| RR-9250-60UR-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Urethane | 60 | 3 | |
| RR-9250-60W-EX750 | 2.50 | .92 | .751/.756 | 1.25 | .50 | Nitrile | 60 | 3 |
