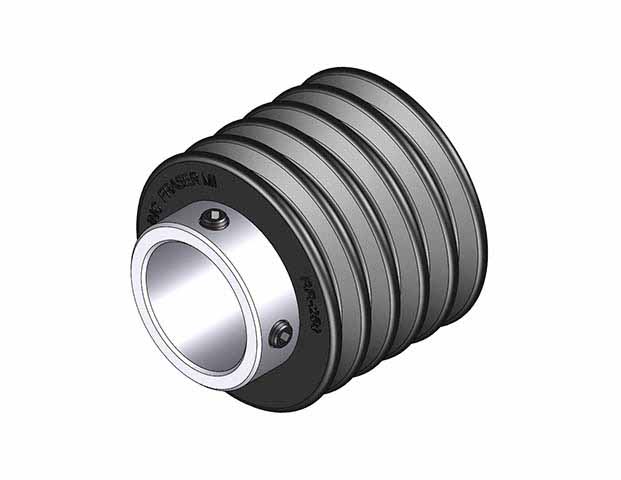

Finned Shaft Drive Rollers - Steel Insert - 1-1/4 in I.D. - Inch

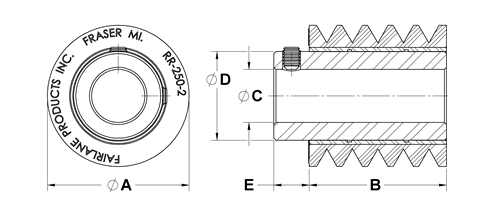

Part # | A in | B in | C in | D in | E in | Durometer Shore A | Material | No. of Fins |
|
---|---|---|---|---|---|---|---|---|---|
RR-250-35-EX12 | 2.50 | 1.94 | 1.251/1.256 | 1.63 | .50 | Neoprene | 35 | 6 | |
RR-667-35-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Neoprene | 35 | 8 | |
RR-667-35UR-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 35 | 8 | |
RR-667-60UR-EX12 | 4.00 | 1.94 | 1.251/1.256 | 1.63 | .50 | Urethane | 60 | 8 |
