Quick Release Pin Flanged Receptacle - Oblong - Inch (OBFR)
OBFR-187

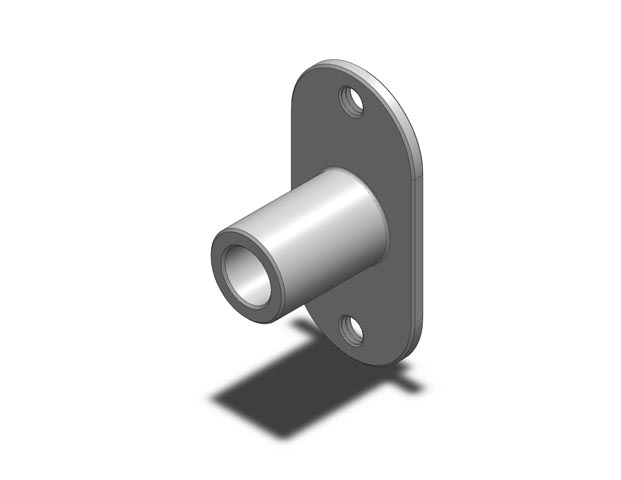

Ball Lock Pin Receptacle - Oblong - 3/16 in

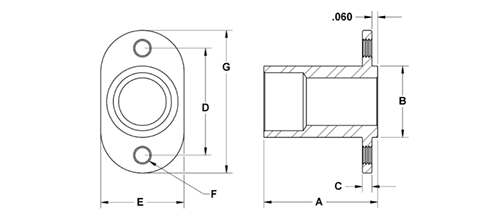

| Part # | Use With Pin Dia in | Flange Style | A in | B in | C in | D in | E in | F Thread in | G in | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| OBFR-187 | 3/16 | Oblong | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| OBFR-250 | 1/4 | Oblong | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| OBFR-312 | 5/16 | Oblong | 0.783 | 0.469 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.500 | |
| OBFR-375 | 3/8 | Oblong | 0.913 | 0.562 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.562 | |
| OBFR-500 | 1/2 | Oblong | 1.195 | 0.750 | 0.100 | 1.125 | 0.875 | 10-32 | 1.500 | 0.750 |
