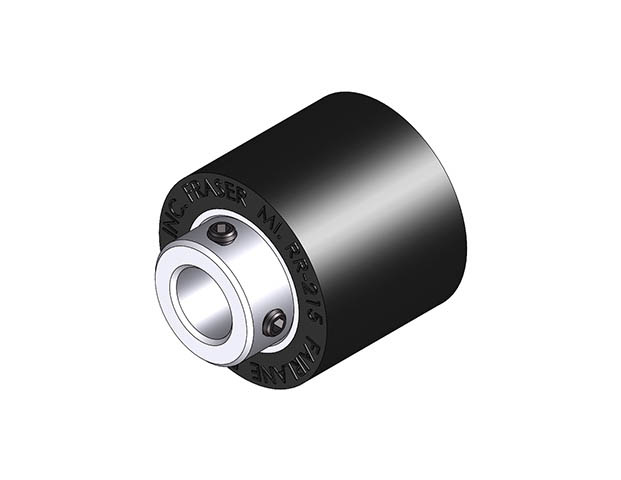

Solid Shaft Drive Rollers - Steel Insert - 1/2 in I.D. - Inch
RR-215-20-EX500
Solid Roller - 1/2 in Shaft Drive - 20 Dur Neoprene - 1.50 in Dia X 1.25 in Wide

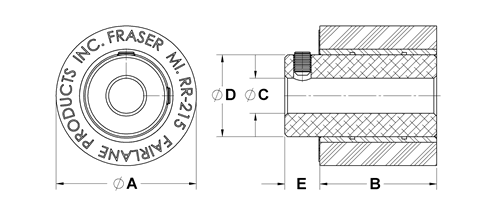

| Part # | A in | B in | C in | D in | E in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|
| RR-2020-20-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-2020-20W-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-2020-35-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-2020-35UR-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-2020-35W-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-2020-60-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-2020-60UR-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-2020-60W-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-2020-80-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-2020-80UR-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-2020-80W-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-2020-95UR-EX500 | 2.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 95 | |
| RR-215-20-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Neoprene | 20 | |
| RR-215-20W-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Nitrile | 20 | |
| RR-215-35-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Neoprene | 35 | |
| RR-215-35UR-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Urethane | 35 | |
| RR-215-35W-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Nitrile | 35 | |
| RR-215-60-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Neoprene | 60 | |
| RR-215-60UR-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Urethane | 60 | |
| RR-215-60W-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Nitrile | 60 | |
| RR-215-80-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Neoprene | 80 | |
| RR-215-80UR-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Urethane | 80 | |
| RR-215-80W-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Nitrile | 80 | |
| RR-215-95UR-EX500 | 1.50 | 1.25 | .501/.505 | .88 | .38 | Urethane | 95 | |
| RR-5020-35UR-EX500 | 5.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-5020-60UR-EX500 | 5.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-5020-80UR-EX500 | 5.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-502-20-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-502-20W-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-502-35-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-502-35UR-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-502-35W-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-502-60-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-502-60UR-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-502-60W-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-502-80-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-502-80UR-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-502-80W-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-502-95UR-EX500 | 2.50 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 95 | |
| RR-6020-35UR-EX500 | 6.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-6020-60UR-EX500 | 6.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-6020-80UR-EX500 | 6.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-754-20-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-754-20W-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-754-35-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-754-35UR-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-754-35W-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-754-60-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-754-60UR-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-754-60W-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-754-80-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-754-80UR-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-754-80W-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-754-95UR-EX500 | 4.00 | 1.94 | .501/.505 | 1.25 | .50 | Urethane | 95 | |
| RR-92020-20-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-92020-20W-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-92020-35-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-92020-35UR-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-92020-35W-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-92020-60-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-92020-60UR-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-92020-60W-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-92020-80-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-92020-80UR-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-92020-80W-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-92020-95UR-EX500 | 2.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 95 | |
| RR-9502-20-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-9502-20W-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-9502-35-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-9502-35UR-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-9502-35W-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-9502-60-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-9502-60UR-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-9502-60W-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-9502-80-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-9502-80UR-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-9502-80W-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-9502-95UR-EX500 | 2.50 | .92 | .501/.505 | 1.25 | .50 | Urethane | 95 | |
| RR-9754-20-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 20 | |
| RR-9754-20W-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 20 | |
| RR-9754-35-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 35 | |
| RR-9754-35UR-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 35 | |
| RR-9754-35W-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 35 | |
| RR-9754-60-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 60 | |
| RR-9754-60UR-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 60 | |
| RR-9754-60W-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 60 | |
| RR-9754-80-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Neoprene | 80 | |
| RR-9754-80UR-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 80 | |
| RR-9754-80W-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Nitrile | 80 | |
| RR-9754-95UR-EX500 | 4.00 | .92 | .501/.505 | 1.25 | .50 | Urethane | 95 |
