Finned Stud Mount Rollers - Precision Sealed Bearing - Inch
RR-9250-2-20-CPC

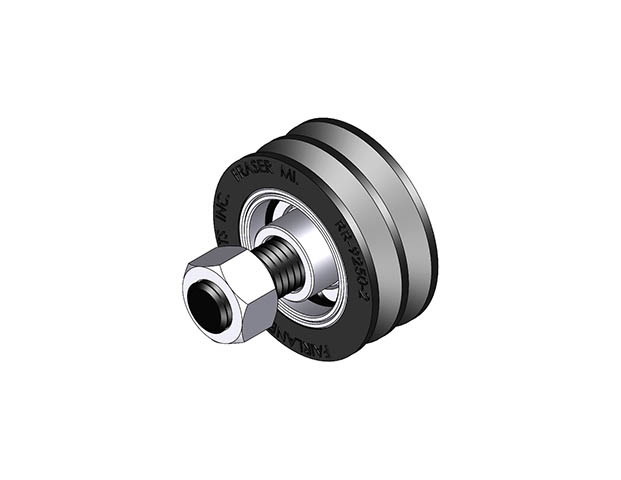

Finned Roller - Precision Sealed Stud Mount - 20 Dur Neoprene - 2.00 in Dia X 0.92 in Wide
| Part # | A in | B in | C Thread | D in | E in | No. of Bearings | Bearing Type in | Material | Durometer Shore A | No. of Fins |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| RR-250-20-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 20 | 6 | |
| RR-250-20W-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 20 | 6 | |
| RR-250-2-20-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 20 | 6 | |
| RR-250-2-20W-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 20 | 6 | |
| RR-250-2-35-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 35 | 6 | |
| RR-250-2-35UR-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 35 | 6 | |
| RR-250-2-35W-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 35 | 6 | |
| RR-250-2-60-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 60 | 6 | |
| RR-250-2-60UR-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 60 | 6 | |
| RR-250-2-60W-CPC | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 60 | 6 | |
| RR-250-35-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 35 | 6 | |
| RR-250-35UR-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 35 | 6 | |
| RR-250-35W-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 35 | 6 | |
| RR-250-60-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 60 | 6 | |
| RR-250-60UR-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 60 | 6 | |
| RR-250-60W-CPC | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 60 | 6 | |
| RR-667-35-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 35 | 8 | |
| RR-667-35UR-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 35 | 8 | |
| RR-667-35W-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 35 | 8 | |
| RR-667-60-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Neoprene | 60 | 8 | |
| RR-667-60UR-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Urethane | 60 | 8 | |
| RR-667-60W-CPC | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | G | Nitrile | 60 | 8 | |
| RR-9250-20-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 20 | 3 | |
| RR-9250-20W-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 20 | 3 | |
| RR-9250-2-20-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 20 | 3 | |
| RR-9250-2-20W-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 20 | 3 | |
| RR-9250-2-35-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 35 | 3 | |
| RR-9250-2-35UR-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Urethane | 35 | 3 | |
| RR-9250-2-35W-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 35 | 3 | |
| RR-9250-2-60-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 60 | 3 | |
| RR-9250-2-60UR-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Urethane | 60 | 3 | |
| RR-9250-2-60W-CPC | 2.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 60 | 3 | |
| RR-9250-35-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 35 | 3 | |
| RR-9250-35UR-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Urethane | 35 | 3 | |
| RR-9250-35W-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 35 | 3 | |
| RR-9250-60-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Neoprene | 60 | 3 | |
| RR-9250-60UR-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Urethane | 60 | 3 | |
| RR-9250-60W-CPC | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | G | Nitrile | 60 | 3 |
