DuraSoft® Stud Mount Rollers - Standard Bearing - Inch
DR-9502-35UR-C

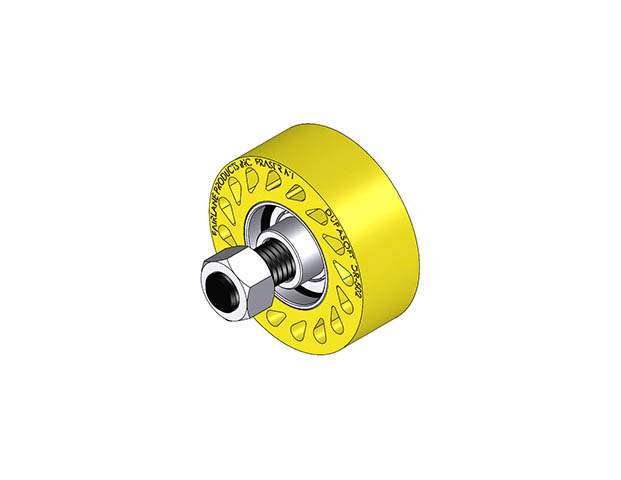

DuraSoft® Roller - Standard Stud Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

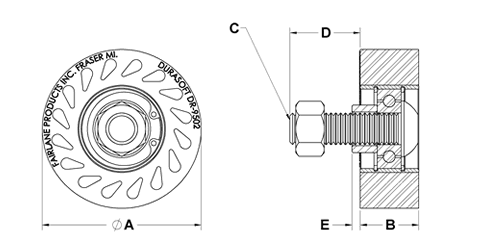

| Part # | A in | B in | C Thread | D in | E in | No. of Bearings | Bearing Type | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DR-502-35UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| DR-502-60UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| DR-502-80UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| DR-502-95UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 95 | |
| DR-754-20-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 20 | |
| DR-754-20W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 20 | |
| DR-754-35-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 35 | |
| DR-754-35UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| DR-754-35W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 35 | |
| DR-754-60UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| DR-754-80UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| DR-754-95UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 95 | |
| DR-9502-35UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 35 | |
| DR-9502-60UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 60 | |
| DR-9502-80UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 80 | |
| DR-9502-95UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 95 | |
| DR-9754-20-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 20 | |
| DR-9754-20W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 20 | |
| DR-9754-35-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 35 | |
| DR-9754-35UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 35 | |
| DR-9754-35W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 35 | |
| DR-9754-60UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 60 | |
| DR-9754-80UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 80 | |
| DR-9754-95UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 95 |
