Precision Sealed Bearing (Inch)

Solid Stud Mount Rollers - Precision Sealed Bearing - Inch

RR-215-20-CPC

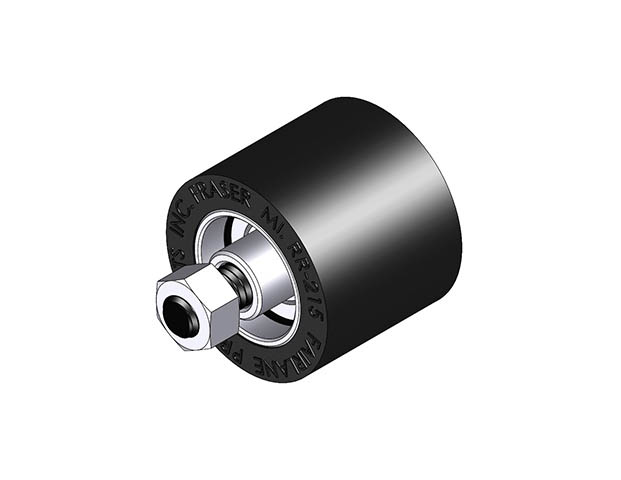

Solid Roller - Precision Sealed Stud Mount - 20 Dur Neoprene - 1.50 in Dia X 1.25 in Wide

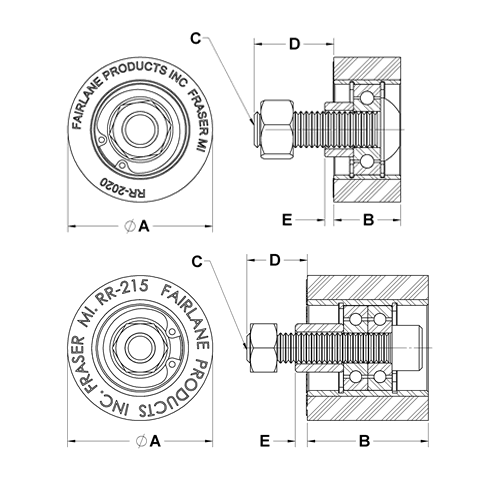

Part #	A in	B in	C Thread	D in	E in	No. of Bearings	Bearing Type in	Material	Durometer Shore A
▶ RR-2020-20-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	20
▶ RR-2020-20W-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	20
▶ RR-2020-35-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	35
▶ RR-2020-35UR-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ RR-2020-35W-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	35
▶ RR-2020-60-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	60
▶ RR-2020-60UR-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ RR-2020-60W-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	60
▶ RR-2020-80-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	80
▶ RR-2020-80UR-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ RR-2020-80W-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	80
▶ RR-2020-95UR-CPC	2.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
▶ RR-215-20-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Neoprene	20
▶ RR-215-20W-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Nitrile	20
▶ RR-215-35-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Neoprene	35
▶ RR-215-35UR-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Urethane	35
▶ RR-215-35W-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Nitrile	35
▶ RR-215-60-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Neoprene	60
▶ RR-215-60UR-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Urethane	60
▶ RR-215-60W-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Nitrile	60
▶ RR-215-80-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Neoprene	80
▶ RR-215-80UR-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Urethane	80
▶ RR-215-80W-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Nitrile	80
▶ RR-215-95UR-CPC	1.50	1.25	5/16-18 x 1.75 SHCS	.63	.12	2	E	Urethane	95
▶ RR-5020-35UR-CPC	5.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ RR-5020-60UR-CPC	5.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ RR-5020-80UR-CPC	5.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ RR-502-20-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	20
▶ RR-502-20W-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	20
▶ RR-502-35-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	35
▶ RR-502-35UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ RR-502-35W-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	35
▶ RR-502-60-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	60
▶ RR-502-60UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ RR-502-60W-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	60
▶ RR-502-80-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	80
▶ RR-502-80UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ RR-502-80W-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	80
▶ RR-502-95UR-CPC	2.50	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
▶ RR-6020-35UR-CPC	6.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ RR-6020-60UR-CPC	6.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ RR-6020-80UR-CPC	6.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ RR-754-20-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	20
▶ RR-754-20W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	20
▶ RR-754-35-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	35
▶ RR-754-35UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	35
▶ RR-754-35W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	35
▶ RR-754-60-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	60
▶ RR-754-60UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	60
▶ RR-754-60W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	60
▶ RR-754-80-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Neoprene	80
▶ RR-754-80UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	80
▶ RR-754-80W-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Nitrile	80
▶ RR-754-95UR-CPC	4.00	1.94	1/2-13 x 2.75 SHCS	1.41	.25	2	G	Urethane	95
▶ RR-92020-20-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Neoprene	20
▶ RR-92020-20W-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Nitrile	20
▶ RR-92020-35-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Neoprene	35
▶ RR-92020-35UR-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Urethane	35
▶ RR-92020-35W-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Nitrile	35
▶ RR-92020-60-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Neoprene	60
▶ RR-92020-60UR-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Urethane	60
▶ RR-92020-60W-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Nitrile	60
▶ RR-92020-80-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Neoprene	80
▶ RR-92020-80UR-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Urethane	80
▶ RR-92020-80W-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Nitrile	80
▶ RR-92020-95UR-CPC	2.00	.92	1/2-13 x 1.75 BHCS	1.10	.12	1	G	Urethane	95
▶ RR-9502-20-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	20
▶ RR-9502-20W-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	20
▶ RR-9502-35-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	35
▶ RR-9502-35UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
▶ RR-9502-35W-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	35
▶ RR-9502-60-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	60
▶ RR-9502-60UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
▶ RR-9502-60W-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	60
▶ RR-9502-80-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	80
▶ RR-9502-80UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
▶ RR-9502-80W-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	80
▶ RR-9502-95UR-CPC	2.50	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
▶ RR-9754-20-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	20
▶ RR-9754-20W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	20
▶ RR-9754-35-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	35
▶ RR-9754-35UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	35
▶ RR-9754-35W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	35
▶ RR-9754-60-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	60
▶ RR-9754-60UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	60
▶ RR-9754-60W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	60
▶ RR-9754-80-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Neoprene	80
▶ RR-9754-80UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	80
▶ RR-9754-80W-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Nitrile	80
▶ RR-9754-95UR-CPC	4.00	.92	1/2-13 x 1.75 LHCS	1.10	.12	1	G	Urethane	95
