Solid Stud Mount Rollers - Precision Bearing - Inch
RR-215-20-CP

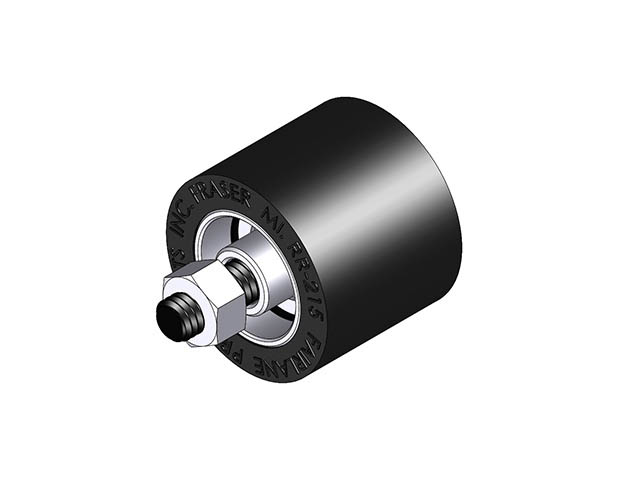

Solid Roller - Precision Stud Mount - 20 Dur Neoprene - 1.50 in Dia X 1.25 in Wide

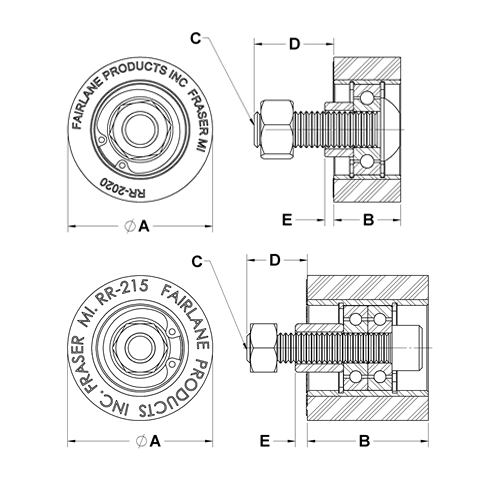

| Part # | A in | B in | C Thread | D in | E in | No. of Bearings | Bearing Type in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RR-2020-20-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 20 | |
| RR-2020-20W-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 20 | |
| RR-2020-35-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 35 | |
| RR-2020-35UR-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 35 | |
| RR-2020-35W-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 35 | |
| RR-2020-60-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 60 | |
| RR-2020-60UR-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 60 | |
| RR-2020-60W-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 60 | |
| RR-2020-80-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 80 | |
| RR-2020-80UR-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 80 | |
| RR-2020-80W-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 80 | |
| RR-2020-95UR-CP | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 95 | |
| RR-215-20-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Neoprene | 20 | |
| RR-215-20W-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Nitrile | 20 | |
| RR-215-35-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Neoprene | 35 | |
| RR-215-35UR-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Urethane | 35 | |
| RR-215-35W-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Nitrile | 35 | |
| RR-215-60-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Neoprene | 60 | |
| RR-215-60UR-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Urethane | 60 | |
| RR-215-60W-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Nitrile | 60 | |
| RR-215-80-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Neoprene | 80 | |
| RR-215-80UR-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Urethane | 80 | |
| RR-215-80W-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Nitrile | 80 | |
| RR-215-95UR-CP | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 2 | D | Urethane | 95 | |
| RR-5020-35UR-CP | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 35 | |
| RR-5020-60UR-CP | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 60 | |
| RR-5020-80UR-CP | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 80 | |
| RR-502-20-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 20 | |
| RR-502-20W-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 20 | |
| RR-502-35-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 35 | |
| RR-502-35UR-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 35 | |
| RR-502-35W-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 35 | |
| RR-502-60-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 60 | |
| RR-502-60UR-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 60 | |
| RR-502-60W-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 60 | |
| RR-502-80-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 80 | |
| RR-502-80UR-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 80 | |
| RR-502-80W-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 80 | |
| RR-502-95UR-CP | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 95 | |
| RR-6020-35UR-CP | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 35 | |
| RR-6020-60UR-CP | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 60 | |
| RR-6020-80UR-CP | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 80 | |
| RR-754-20-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 20 | |
| RR-754-20W-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 20 | |
| RR-754-35-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 35 | |
| RR-754-35UR-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 35 | |
| RR-754-35W-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 35 | |
| RR-754-60-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 60 | |
| RR-754-60UR-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 60 | |
| RR-754-60W-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 60 | |
| RR-754-80-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Neoprene | 80 | |
| RR-754-80UR-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 80 | |
| RR-754-80W-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Nitrile | 80 | |
| RR-754-95UR-CP | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 2 | F | Urethane | 95 | |
| RR-92020-20-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Neoprene | 20 | |
| RR-92020-20W-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Nitrile | 20 | |
| RR-92020-35-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Neoprene | 35 | |
| RR-92020-35UR-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Urethane | 35 | |
| RR-92020-35W-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Nitrile | 35 | |
| RR-92020-60-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Neoprene | 60 | |
| RR-92020-60UR-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Urethane | 60 | |
| RR-92020-60W-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Nitrile | 60 | |
| RR-92020-80-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Neoprene | 80 | |
| RR-92020-80UR-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Urethane | 80 | |
| RR-92020-80W-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Nitrile | 80 | |
| RR-92020-95UR-CP | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | F | Urethane | 95 | |
| RR-9502-20-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 20 | |
| RR-9502-20W-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 20 | |
| RR-9502-35-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 35 | |
| RR-9502-35UR-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 35 | |
| RR-9502-35W-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 35 | |
| RR-9502-60-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 60 | |
| RR-9502-60UR-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 60 | |
| RR-9502-60W-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 60 | |
| RR-9502-80-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 80 | |
| RR-9502-80UR-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 80 | |
| RR-9502-80W-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 80 | |
| RR-9502-95UR-CP | 2.50 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 95 | |
| RR-9754-20-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 20 | |
| RR-9754-20W-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 20 | |
| RR-9754-35-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 35 | |
| RR-9754-35UR-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 35 | |
| RR-9754-35W-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 35 | |
| RR-9754-60-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 60 | |
| RR-9754-60UR-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 60 | |
| RR-9754-60W-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 60 | |
| RR-9754-80-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Neoprene | 80 | |
| RR-9754-80UR-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 80 | |
| RR-9754-80W-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Nitrile | 80 | |
| RR-9754-95UR-CP | 4.00 | .92 | 1/2-13 x 1.75 LHCS | 1.10 | .12 | 1 | F | Urethane | 95 |
