Bumpers - Rectangular - Steel Plate - C'Bore Mount (RB)
RB-1137-60UR

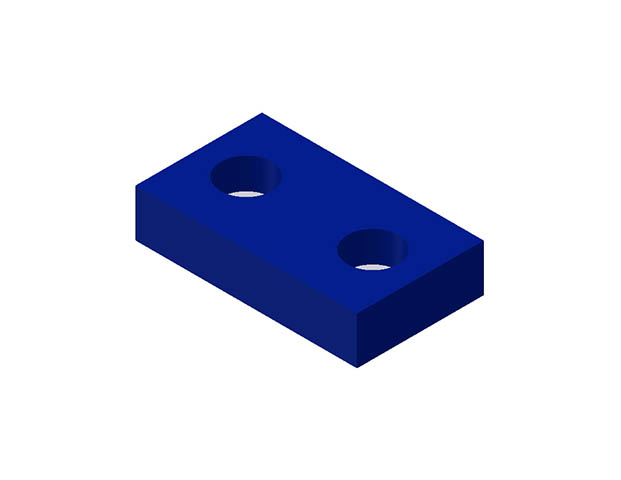

Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/8 in

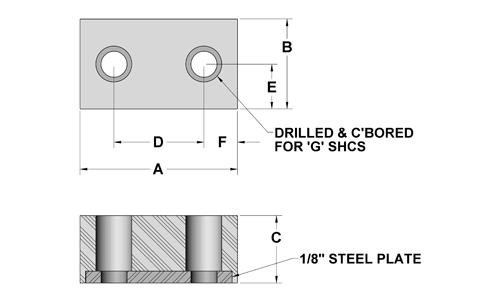

| Part # | A in | B in | C in | D in | E | F | G | Durometer Shore A | Material |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RB-1137 | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 40 | Neoprene | |
| RB-1137-40 | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 40 | Neoprene | |
| RB-1137-60UR | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1137-60URBLK | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1137-95UR | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1137-95URBLK | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1137-UR | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-1137-URBLK | 1-3/4 | 1 | 3/8 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-1150 | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 40 | Neoprene | |
| RB-1150-40 | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 40 | Neoprene | |
| RB-1150-60UR | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1150-60URBLK | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1150-95UR | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1150-95URBLK | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1150-UR | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-1150-URBLK | 1-3/4 | 1 | 1/2 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-1175 | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Neoprene | |
| RB-1175-35 | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 35 | Neoprene | |
| RB-1175-60UR | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1175-60URBLK | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-1175-95UR | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1175-95URBLK | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-1175-UR | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-1175-URBLK | 1-3/4 | 1 | 3/4 | 1 | 1/2 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-2025 | 2-1/2 | 2 | 2 | 1-1/2 | - | 1/2 | - | 80 | Neoprene | |
| RB-2025-C | 2-1/2 | 2 | 2 | 1-1/2 | 1 | 1/2 | 5/16 | 80 | Neoprene | |
| RB-2025-C-40 | 2-1/2 | 2 | 2 | 1-1/2 | 1 | 1/2 | 5/16 | 40 | Neoprene | |
| RB-2025-C-40UR | 2-1/2 | 2 | 2 | 1-1/2 | 1 | 1/2 | 5/16 | 40 | Urethane | |
| RB-2025-C-60UR | 2-1/2 | 2 | 2 | 1-1/2 | 1 | 1/2 | 5/16 | 60 | Urethane | |
| RB-2025-C-UR | 2-1/2 | 2 | 2 | 1-1/2 | 1 | 1/2 | 5/16 | 80 | Urethane | |
| RB-2025-UR | 2-1/2 | 2 | 2 | 1-1/2 | - | 1/2 | - | 80 | Urethane | |
| RB-7525 | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 80 | Neoprene | |
| RB-7525-40 | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 40 | Neoprene | |
| RB-7525-60UR | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 60 | Urethane | |
| RB-7525-60URBLK | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 60 | Urethane | |
| RB-7525-95UR | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 95 | Urethane | |
| RB-7525-95URBLK | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 95 | Urethane | |
| RB-7525-UR | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 80 | Urethane | |
| RB-7525-URBLK | 2-1/2 | 5/8 | 5/8 | 1-1/2 | 5/16 | 1/2 | 1/4 (6mm) | 80 | Urethane | |
| RB-7575 | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 80 | Neoprene | |
| RB-7575-40 | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 40 | Neoprene | |
| RB-7575-60UR | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-7575-60URBLK | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 60 | Urethane | |
| RB-7575-95UR | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-7575-95URBLK | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 95 | Urethane | |
| RB-7575-UR | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 80 | Urethane | |
| RB-7575-URBLK | 3/4 | 3/4 | 5/8 | - | 3/8 | 3/8 | 1/4 (6mm) | 80 | Urethane |
