Bumpers - Round - Small - Steel Core - Tapped - Metric (MRB)
MRB-5166

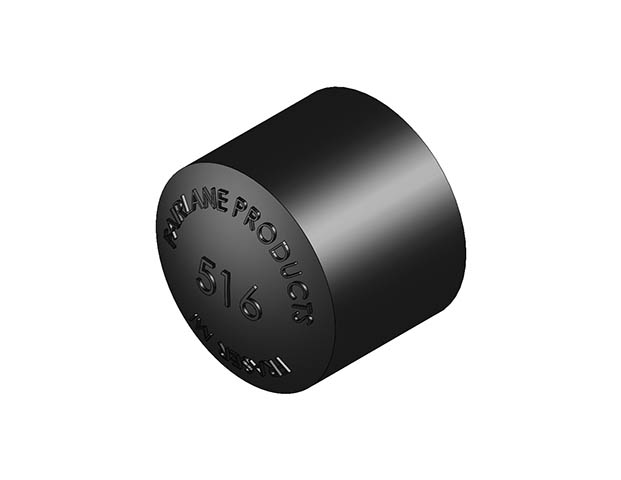

Small Round Bumper - 70 Dur Neoprene - M6 x 1.00 x 6mm

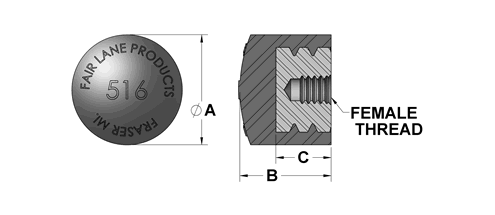

| Part # | A Dia mm | B Length mm | C mm | Durometer Shore A | Thread mm | Thread Length mm | Material | Color |
|
|---|---|---|---|---|---|---|---|---|---|
| MRB-5166 | 19 | 16 | 9.0 | 70 | M6x1.0 | 6 | Neoprene | Black | |
| MRB-5166-40 | 19 | 16 | 9.0 | 40 | M6x1.0 | 6 | Neoprene | Black | |
| MRB-5166-60UR | 19 | 16 | 9.0 | 60 | M6x1.0 | 6 | Urethane | Blue | |
| MRB-5166-80UR | 19 | 16 | 9.0 | 80 | M6x1.0 | 6 | Urethane | Red | |
| MRB-5166-95UR | 19 | 16 | 9.0 | 95 | M6x1.0 | 6 | Urethane | Orange | |
| MRB-5168 | 19 | 16 | 9.0 | 70 | M8x1.25 | 6 | Neoprene | Black | |
| MRB-5168-40 | 19 | 16 | 9.0 | 40 | M8x1.25 | 6 | Neoprene | Black | |
| MRB-5168-60UR | 19 | 16 | 9.0 | 60 | M8x1.25 | 6 | Urethane | Blue | |
| MRB-5168-80UR | 19 | 16 | 9.0 | 80 | M8x1.25 | 6 | Urethane | Red | |
| MRB-5168-95UR | 19 | 16 | 9.0 | 95 | M8x1.25 | 6 | Urethane | Orange |
