Bumpers - Round - Small - Steel Core - Tapped - Inch (RB)
RB-516-70W

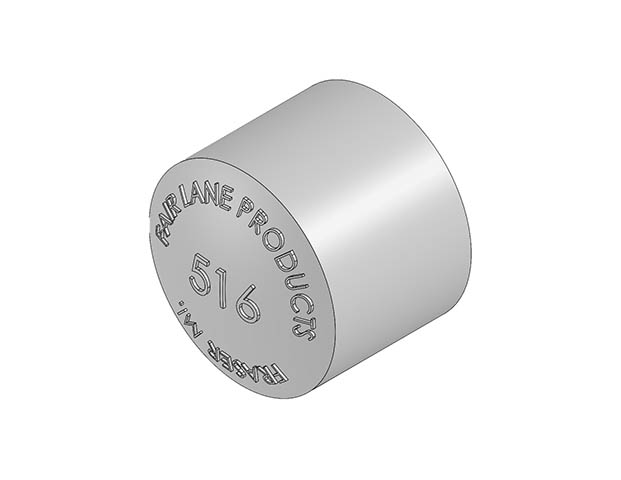

Small Round Bumper - 70 Dur Nitrile - 5/16-18 X 1/4 in

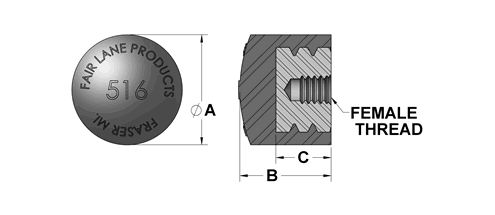

| Part # | A Dia in | B Length in | C in | Durometer Shore A | Thread in | Thread Depth in | Material |
|
|---|---|---|---|---|---|---|---|---|
| RB-516-024 | 3/4 | 5/8 | 3/8 | 70 | #10-24 | 1/4 | Neoprene | |
| RB-516-024-40 | 3/4 | 5/8 | 3/8 | 40 | #10-24 | 1/4 | Neoprene | |
| RB-516-024-60UR | 3/4 | 5/8 | 3/8 | 60 | #10-24 | 1/4 | Urethane | |
| RB-516-024-70W | 3/4 | 5/8 | 3/8 | 70 | #10-24 | 1/4 | Nitrile | |
| RB-516-024-95UR | 3/4 | 5/8 | 3/8 | 95 | #10-24 | 1/4 | Urethane | |
| RB-516-024UR | 3/4 | 5/8 | 3/8 | 80 | #10-24 | 1/4 | Urethane | |
| RB-516-032 | 3/4 | 5/8 | 3/8 | 70 | #10-32 | 1/4 | Neoprene | |
| RB-516-032-40 | 3/4 | 5/8 | 3/8 | 40 | #10-32 | 1/4 | Neoprene | |
| RB-516-032-60UR | 3/4 | 5/8 | 3/8 | 60 | #10-32 | 1/4 | Urethane | |
| RB-516-032-70W | 3/4 | 5/8 | 3/8 | 70 | #10-32 | 1/4 | Nitrile | |
| RB-516-032-95UR | 3/4 | 5/8 | 3/8 | 95 | #10-32 | 1/4 | Urethane | |
| RB-516-032UR | 3/4 | 5/8 | 3/8 | 80 | #10-32 | 1/4 | Urethane | |
| RB-516-120 | 3/4 | 5/8 | 3/8 | 70 | 1/4-20 | 1/4 | Neoprene | |
| RB-516-120-40 | 3/4 | 5/8 | 3/8 | 40 | 1/4-20 | 1/4 | Neoprene | |
| RB-516-120-60UR | 3/4 | 5/8 | 3/8 | 60 | 1/4-20 | 1/4 | Urethane | |
| RB-516-120-70W | 3/4 | 5/8 | 3/8 | 70 | 1/4-20 | 1/4 | Nitrile | |
| RB-516-120-95UR | 3/4 | 5/8 | 3/8 | 95 | 1/4-20 | 1/4 | Urethane | |
| RB-516-120UR | 3/4 | 5/8 | 3/8 | 80 | 1/4-20 | 1/4 | Urethane | |
| RB-516-128 | 3/4 | 5/8 | 3/8 | 70 | 1/4-28 | 1/4 | Neoprene | |
| RB-516-128-40 | 3/4 | 5/8 | 3/8 | 40 | 1/4-28 | 1/4 | Neoprene | |
| RB-516-128-60UR | 3/4 | 5/8 | 3/8 | 60 | 1/4-28 | 1/4 | Urethane | |
| RB-516-128-70W | 3/4 | 5/8 | 3/8 | 70 | 1/4-28 | 1/4 | Nitrile | |
| RB-516-128-95UR | 3/4 | 5/8 | 3/8 | 95 | 1/4-28 | 1/4 | Urethane | |
| RB-516-128UR | 3/4 | 5/8 | 3/8 | 80 | 1/4-28 | 1/4 | Urethane | |
| RB-516-45 | 3/4 | 5/8 | 3/8 | 45 | 5/16-18 | 1/4 | Neoprene | |
| RB-516-518 | 3/4 | 5/8 | 3/8 | 70 | 5/16-18 | 1/4 | Neoprene | |
| RB-516-518-40 | 3/4 | 5/8 | 3/8 | 40 | 5/16-18 | 1/4 | Neoprene | |
| RB-516-518-60UR | 3/4 | 5/8 | 3/8 | 60 | 5/16-18 | 1/4 | Urethane | |
| RB-516-518-70W | 3/4 | 5/8 | 3/8 | 70 | 5/16-18 | 1/4 | Nitrile | |
| RB-516-518-95UR | 3/4 | 5/8 | 3/8 | 95 | 5/16-18 | 1/4 | Urethane | |
| RB-516-518UR | 3/4 | 5/8 | 3/8 | 80 | 5/16-18 | 1/4 | Urethane | |
| RB-516-524 | 3/4 | 5/8 | 3/8 | 70 | 5/16-24 | 1/4 | Neoprene | |
| RB-516-524-40 | 3/4 | 5/8 | 3/8 | 40 | 5/16-24 | 1/4 | Neoprene | |
| RB-516-524-60UR | 3/4 | 5/8 | 3/8 | 60 | 5/16-18 | 1/4 | Urethane | |
| RB-516-524-70W | 3/4 | 5/8 | 3/8 | 70 | 5/16-18 | 1/4 | Nitrile | |
| RB-516-524-95UR | 3/4 | 5/8 | 3/8 | 95 | 5/16-18 | 1/4 | Urethane | |
| RB-516-524UR | 3/4 | 5/8 | 3/8 | 80 | 5/16-24 | 1/4 | Urethane | |
| RB-516-524URBLK | ||||||||
| RB-516-60UR | 3/4 | 5/8 | 3/8 | 60 | 5/16-18 | 1/4 | Urethane | |
| RB-516-70W | 3/4 | 5/8 | 3/8 | 70 | 5/16-18 | 1/4 | Nitrile |
