Bumpers - Round - Hex Shoulder - Steel Core - Tapped - Inch (RBH)
RBH-516-024UR

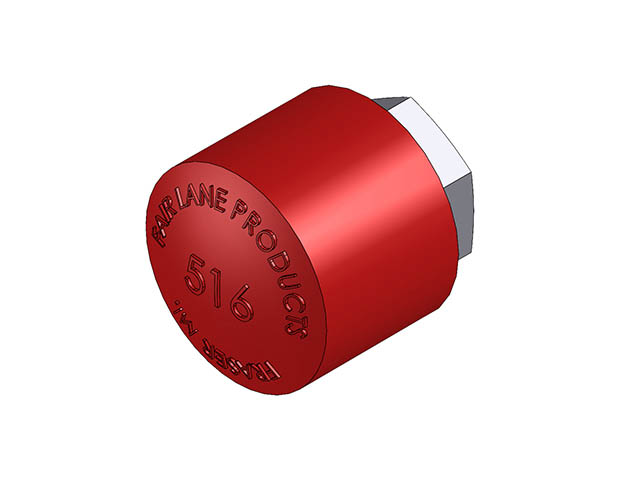

Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-24 X 7/16 in

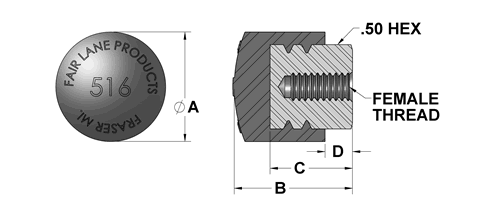

| Part # | A Dia in | B Length in | C in | D in | Durometer Shore A | Thread in | Thread Depth in | Hex in | Material |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RBH-516-024-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | #10-24 | 7/16 | 1/2 | Urethane | |
| RBH-516-024-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | #10-24 | 7/16 | 1/2 | Urethane | |
| RBH-516-024UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | #10-24 | 7/16 | 1/2 | Urethane | |
| RBH-516-032-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | #10-32 | 7/16 | 1/2 | Urethane | |
| RBH-516-032-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | #10-32 | 7/16 | 1/2 | Urethane | |
| RBH-516-032UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | #10-32 | 7/16 | 1/2 | Urethane | |
| RBH-516-120-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | 1/4-20 | 7/16 | 1/2 | Urethane | |
| RBH-516-120-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | 1/4-20 | 7/16 | 1/2 | Urethane | |
| RBH-516-120UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | 1/4-20 | 7/16 | 1/2 | Urethane | |
| RBH-516-128-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | 1/4-28 | 7/16 | 1/2 | Urethane | |
| RBH-516-128-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | 1/4-28 | 7/16 | 1/2 | Urethane | |
| RBH-516-128UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | 1/4-28 | 7/16 | 1/2 | Urethane | |
| RBH-516-518-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | 5/16-18 | 7/16 | 1/2 | Urethane | |
| RBH-516-518-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | 5/16-18 | 7/16 | 1/2 | Urethane | |
| RBH-516-518UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | 5/16-18 | 7/16 | 1/2 | Urethane | |
| RBH-516-524-60UR | 3/4 | 13/16 | 9/16 | 3/16 | 60 | 5/16-24 | 7/16 | 1/2 | Urethane | |
| RBH-516-524-95UR | 3/4 | 13/16 | 9/16 | 3/16 | 95 | 5/16-24 | 7/16 | 1/2 | Urethane | |
| RBH-516-524UR | 3/4 | 13/16 | 9/16 | 3/16 | 80 | 5/16-24 | 7/16 | 1/2 | Urethane |
