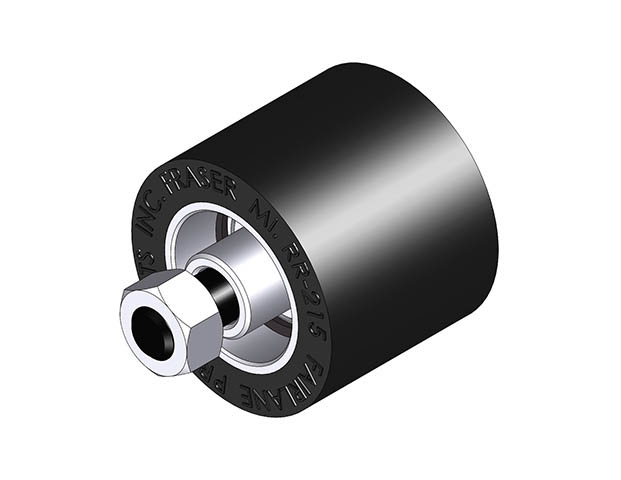

Solid Stud Mount Rollers - Standard Bearing - Inch
RR-215-20-C
Solid Roller - Standard Stud Mount - 20 Dur Neoprene - 1.50 in Dia X 1.25 in Wide

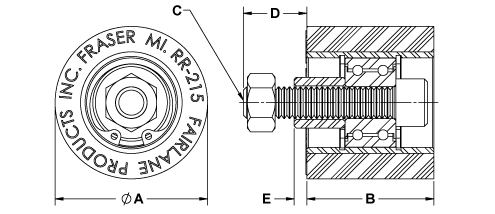

| Part # | A in | B in | C Thread | D in | E in | No. of Bearings | Bearing Type in | Material | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RR-2020-20-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 20 | |
| RR-2020-20W-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 20 | |
| RR-2020-35-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 35 | |
| RR-2020-35UR-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| RR-2020-35W-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 35 | |
| RR-2020-60-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 60 | |
| RR-2020-60UR-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| RR-2020-60W-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 60 | |
| RR-2020-80-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 80 | |
| RR-2020-80UR-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| RR-2020-80W-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 80 | |
| RR-2020-95UR-C | 2.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 95 | |
| RR-215-20-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Neoprene | 20 | |
| RR-215-20W-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Nitrile | 20 | |
| RR-215-35-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Neoprene | 35 | |
| RR-215-35UR-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Urethane | 35 | |
| RR-215-35W-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Nitrile | 35 | |
| RR-215-60-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Neoprene | 60 | |
| RR-215-60UR-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Urethane | 60 | |
| RR-215-60W-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Nitrile | 60 | |
| RR-215-80-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Neoprene | 80 | |
| RR-215-80UR-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Urethane | 80 | |
| RR-215-80W-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Nitrile | 80 | |
| RR-215-95UR-C | 1.50 | 1.25 | 5/16-18 x 1.75 SHCS | .63 | .12 | 1 | A | Urethane | 95 | |
| RR-5020-35UR-C | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| RR-5020-60UR-C | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| RR-5020-80UR-C | 5.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| RR-502-20-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 20 | |
| RR-502-20W-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 20 | |
| RR-502-35-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 35 | |
| RR-502-35UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| RR-502-35W-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 35 | |
| RR-502-60-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 60 | |
| RR-502-60UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| RR-502-60W-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 60 | |
| RR-502-80-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 80 | |
| RR-502-80UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| RR-502-80W-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 80 | |
| RR-502-95UR-C | 2.50 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 95 | |
| RR-6020-35UR-C | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| RR-6020-60UR-C | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| RR-6020-80UR-C | 6.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| RR-754-20-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 20 | |
| RR-754-20W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 20 | |
| RR-754-35-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 35 | |
| RR-754-35UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 35 | |
| RR-754-35W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 35 | |
| RR-754-60-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 60 | |
| RR-754-60UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 60 | |
| RR-754-60W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 60 | |
| RR-754-80-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Neoprene | 80 | |
| RR-754-80UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 80 | |
| RR-754-80W-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Nitrile | 80 | |
| RR-754-95UR-C | 4.00 | 1.94 | 1/2-13 x 2.75 SHCS | 1.41 | .25 | 1 | C | Urethane | 95 | |
| RR-92020-20-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 20 | |
| RR-92020-20W-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 20 | |
| RR-92020-35-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 35 | |
| RR-92020-35UR-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 35 | |
| RR-92020-35W-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 35 | |
| RR-92020-60-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 60 | |
| RR-92020-60UR-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 60 | |
| RR-92020-60W-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 60 | |
| RR-92020-80-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 80 | |
| RR-92020-80UR-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 80 | |
| RR-92020-80W-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 80 | |
| RR-92020-95UR-C | 2.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 95 | |
| RR-9502-20-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 20 | |
| RR-9502-20W-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 20 | |
| RR-9502-35-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 35 | |
| RR-9502-35UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 35 | |
| RR-9502-35W-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 35 | |
| RR-9502-60-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 60 | |
| RR-9502-60UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 60 | |
| RR-9502-60W-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 60 | |
| RR-9502-80-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 80 | |
| RR-9502-80UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 80 | |
| RR-9502-80W-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 80 | |
| RR-9502-95UR-C | 2.50 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 95 | |
| RR-9754-20-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 20 | |
| RR-9754-20W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 20 | |
| RR-9754-35-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 35 | |
| RR-9754-35UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 35 | |
| RR-9754-35W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 35 | |
| RR-9754-60-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 60 | |
| RR-9754-60UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 60 | |
| RR-9754-60W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 60 | |
| RR-9754-80-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Neoprene | 80 | |
| RR-9754-80UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 80 | |
| RR-9754-80W-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Nitrile | 80 | |
| RR-9754-95UR-C | 4.00 | .92 | 1/2-13 x 1.75 BHCS | 1.10 | .12 | 1 | B | Urethane | 95 |
