Bumpers - Round - Hex Shoulder - Steel Core - Male Thread - Metric (MRB)
MRB-5166X15

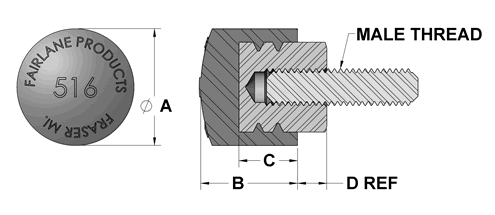

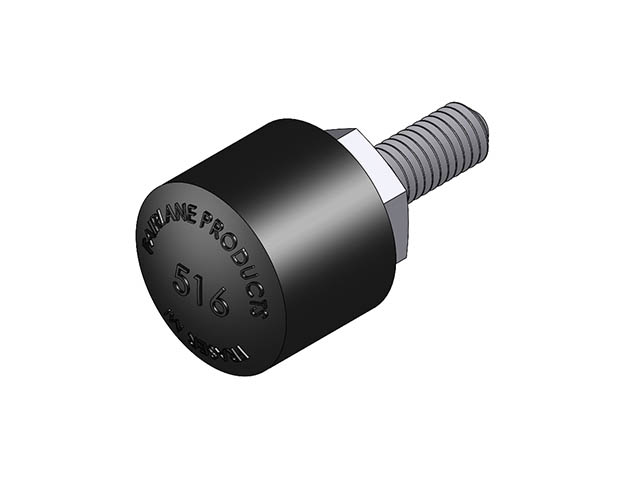

Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - M6 x 1.00 x 15mm
| Part # | A Dia mm | B Length mm | C mm | D mm | Durometer Shore A | Thread mm | Thread Length mm | Material | Color |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MRB-5166URX15 | 19 | 16 | 9 | 3.2 | 80 | M6x1.0 | 15 | Urethane | Red | |
| MRB-5166URX30 | 19 | 16 | 9 | 3.2 | 80 | M6x1.0 | 30 | Urethane | Red | |
| MRB-5166X15 | 19 | 16 | 9 | 3.2 | 70 | M6x1.0 | 15 | Neoprene | Black | |
| MRB-5166X15-40 | 19 | 16 | 9 | 3.2 | 40 | M6x1.0 | 15 | Neoprene | Black | |
| MRB-5166X15-60UR | 19 | 16 | 9 | 3.2 | 60 | M6x1.0 | 15 | Urethane | Blue | |
| MRB-5166X15-95UR | 19 | 16 | 9 | 3.2 | 95 | M6x1.0 | 15 | Urethane | Orange | |
| MRB-5166X30 | 19 | 16 | 9 | 3.2 | 70 | M6x1.0 | 30 | Neoprene | Black | |
| MRB-5166X30-40 | 19 | 16 | 9 | 4.0 | 40 | M6x1.0 | 30 | Neoprene | Black | |
| MRB-5166X30-60UR | 19 | 16 | 9 | 4.0 | 60 | M6x1.0 | 30 | Urethane | Blue | |
| MRB-5166X30-95UR | 19 | 16 | 9 | 4.0 | 95 | M6x1.0 | 30 | Urethane | Orange | |
| MRB-5168URX15 | 19 | 16 | 9 | 4.0 | 80 | M8x1.25 | 15 | Urethane | Red | |
| MRB-5168URX30 | 19 | 16 | 9 | 4.0 | 80 | M8x1.25 | 30 | Urethane | Red | |
| MRB-5168X15 | 19 | 16 | 9 | 4.0 | 70 | M8x1.25 | 15 | Neoprene | Black | |
| MRB-5168X15-40 | 19 | 16 | 9 | 3.2 | 40 | M8x1.25 | 15 | Neoprene | Black | |
| MRB-5168X15-60UR | 19 | 16 | 9 | 3.2 | 60 | M8x1.25 | 15 | Urethane | Blue | |
| MRB-5168X15-95UR | 19 | 16 | 9 | 3.2 | 95 | M8x1.25 | 15 | Urethane | Orange | |
| MRB-5168X30 | 19 | 16 | 9 | 4.0 | 70 | M8x1.25 | 30 | Neoprene | Black | |
| MRB-5168X30-40 | 19 | 16 | 9 | 4.0 | 40 | M8x1.25 | 30 | Neoprene | Black | |
| MRB-5168X30-60UR | 19 | 16 | 9 | 4.0 | 60 | M8x1.25 | 30 | Urethane | Blue | |
| MRB-5168X30-95UR | 19 | 16 | 9 | 4.0 | 95 | M8x1.25 | 30 | Urethane | Orange |
