Quick Release Pin Flanged Receptacle - Diamond - Inch (DIFR)
DIFR-187

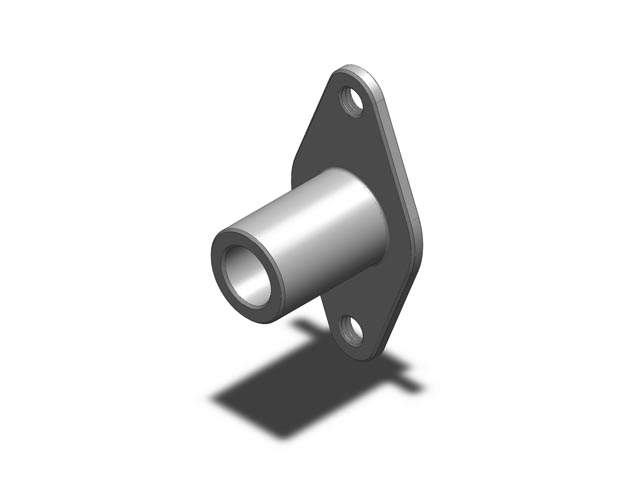

Ball Lock Pin Receptacle - Diamond - 3/16 in

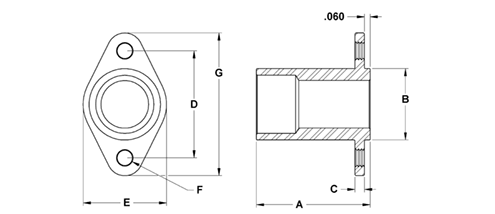

| Part # | Use With Pin Dia | Flange Style | A in | B in | C in | D in | E in | F Thread in | G in | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIFR-187 | 3/16 | Diamond | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| DIFR-250 | 1/4 | Diamond | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| DIFR-312 | 5/16 | Diamond | 0.783 | 0.469 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.500 | |
| DIFR-375 | 3/8 | Diamond | 0.913 | 0.562 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.562 | |
| DIFR-500 | 1/2 | Diamond | 1.195 | 0.750 | 0.100 | 1.125 | 0.875 | 10-32 | 1.500 | 0.750 |
