Bumpers - Round - Steel Core - Male Thread - Inch (RB)

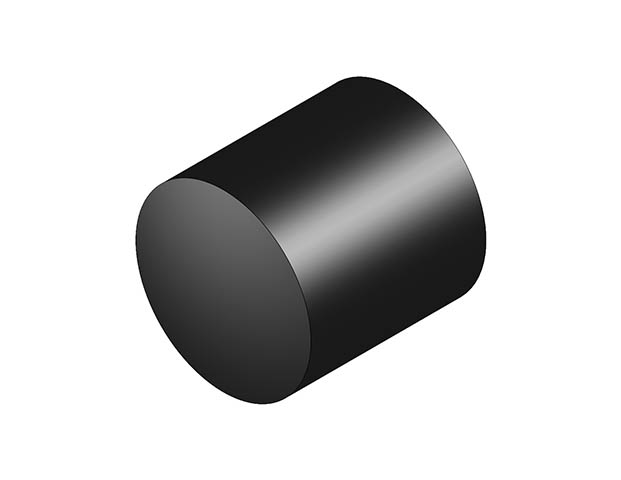

RB-3WM-10
Round Bumper - 40 Dur Nitrile - 3/8-16 X 5/8 in

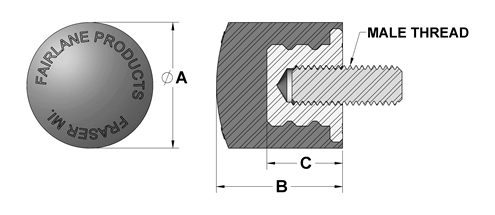

| Part # | A Dia in | B Length in | C in | Durometer Shore A | Thread in | Thread Length in | Material |
|
|---|---|---|---|---|---|---|---|---|
| RB-10-40URM-16 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Urethane | |
| RB-10-40URM-20 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Urethane | |
| RB-10-60URM-16 | 1-3/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1 | Urethane | |
| RB-10-60URM-20 | 1-3/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1-1/4 | Urethane | |
| RB-10-95URM-16 | 1-3/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1 | Urethane | |
| RB-10-95URM-20 | 1-3/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1-1/4 | Urethane | |
| RB-10M-16 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Neoprene | |
| RB-10M-16-70 | 1-3/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1 | Neoprene | |
| RB-10M-20 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Neoprene | |
| RB-10M-20-70 | 1-3/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1-1/4 | Neoprene | |
| RB-10WM-16 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Nitrile | |
| RB-10WM-20 | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Nitrile | |
| RB-14M-13 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Neoprene | |
| RB-14URM-13 | 1-1/4 | 1-1/4 | 3/4 | 80 | 1/2-13 | 3/4 | Urethane | |
| RB-14WM-13 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Nitrile | |
| RB-3-40URM-10 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Urethane | |
| RB-3-40URM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Urethane | |
| RB-3-40URM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Urethane | |
| RB-3-60URM-10 | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-16 | 5/8 | Urethane | |
| RB-3-60URM-16 | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-16 | 1 | Urethane | |
| RB-3-60URM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Urethane | |
| RB-3-95URM-10 | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 5/8 | Urethane | |
| RB-3-95URM-16 | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 1 | Urethane | |
| RB-3-95URM-20 | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 1-1/4 | Urethane | |
| RB-3M-10 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Neoprene | |
| RB-3M-10-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 5/8 | Neoprene | |
| RB-3M-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Neoprene | |
| RB-3M-16-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 1 | Neoprene | |
| RB-3M-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Neoprene | |
| RB-3M-20-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 1-1/4 | Neoprene | |
| RB-3URM-10 | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 5/8 | Urethane | |
| RB-3URM-16 | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 1 | Urethane | |
| RB-3URM-20 | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 1-1/4 | Urethane | |
| RB-3WM-10 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Nitrile | |
| RB-3WM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Nitrile | |
| RB-3WM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Nitrile | |
| RB-5-40URM-13 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Urethane | |
| RB-5-40URM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Urethane | |
| RB-5-40URM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Urethane | |
| RB-5-60URM-13 | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 3/4 | Urethane | |
| RB-5-60URM-16 | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 1 | Urethane | |
| RB-5-60URM-20 | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 1-1/4 | Urethane | |
| RB-5-95URM-13 | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 3/4 | Urethane | |
| RB-5-95URM-16 | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 1 | Urethane | |
| RB-5-95URM-20 | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 1-1/4 | Urethane | |
| RB-5M-13 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Neoprene | |
| RB-5M-13-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 3/4 | Neoprene | |
| RB-5M-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Neoprene | |
| RB-5M-16-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 1 | Neoprene | |
| RB-5M-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Neoprene | |
| RB-5M-20-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 1-1/4 | Neoprene | |
| RB-5WM-13 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Nitrile | |
| RB-5WM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Nitrile | |
| RB-5WM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Nitrile | |
| RB-8-40URM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Urethane | |
| RB-8-40URM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Urethane | |
| RB-8-60URM-16 | 1-1/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1 | Urethane | |
| RB-8-60URM-20 | 1-1/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1-1/4 | Urethane | |
| RB-8-95URM-16 | 1-1/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1 | Urethane | |
| RB-8-95URM-20 | 1-1/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1-1/4 | Urethane | |
| RB-8M-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Neoprene | |
| RB-8M-16-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1 | Neoprene | |
| RB-8M-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Neoprene | |
| RB-8M-20-70 | 1-1/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1-1/4 | Neoprene | |
| RB-8URM-16 | 1-1/4 | 1-1/4 | 3/4 | 80 | 5/8-18 | 1 | Urethane | |
| RB-8WM-16 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Nitrile | |
| RB-8WM-20 | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Nitrile |
