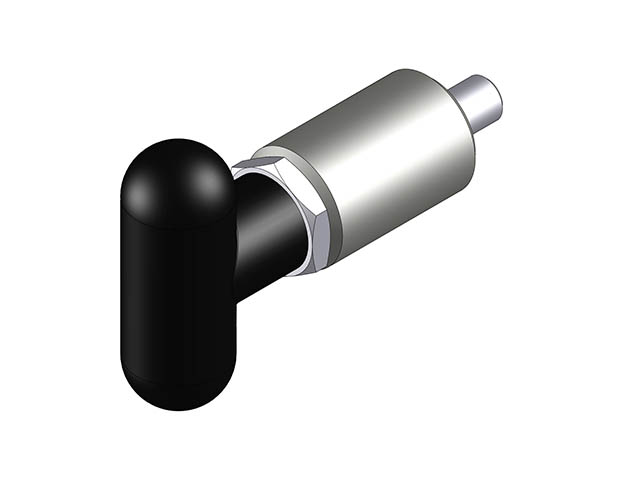

Indexing Plungers - Pull Pins - T-Handle - SS Plunger - SS Housing - with Lockout (CP-TLOSS)

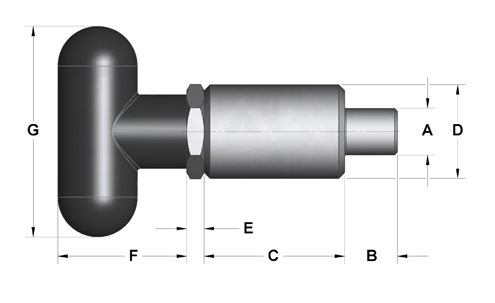

Part # | A in | B in | C in | D in | E in | F in | G in |
|
---|---|---|---|---|---|---|---|---|
CP-K100TLOSS | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
CP-K200TLOSS | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 | |
CP-K320TLOSS | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-7/16 | 2-1/4 |
