Indexing Plungers - Pull Pins - Threaded End - Steel Plunger - Aluminum Housing (CP-NKAL)
CP-K25NKAL
Pull Pin - Steel Plunger w/o Handle - Aluminum Barrel - 1/4 in

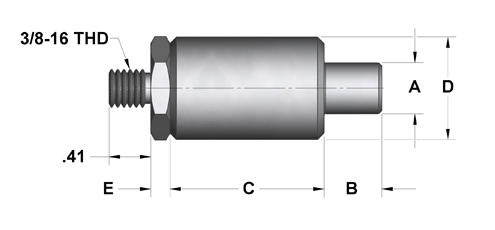

| Part # | A in | B in | C in | D in | E in |
|
|---|---|---|---|---|---|---|
| CP-K100NKAL | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | |
| CP-K200NKAL | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | |
| CP-K25NKAL | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | |
| CP-K320NKAL | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | |
| CP-K420NKAL | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 |
