Base Design Swivots® Gripper Assembly - SofTop® Urethane Surface Cone - Metric (MBBU-FC-UR)
MBBU-1012-FC-35UR

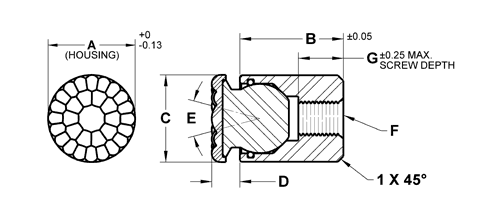

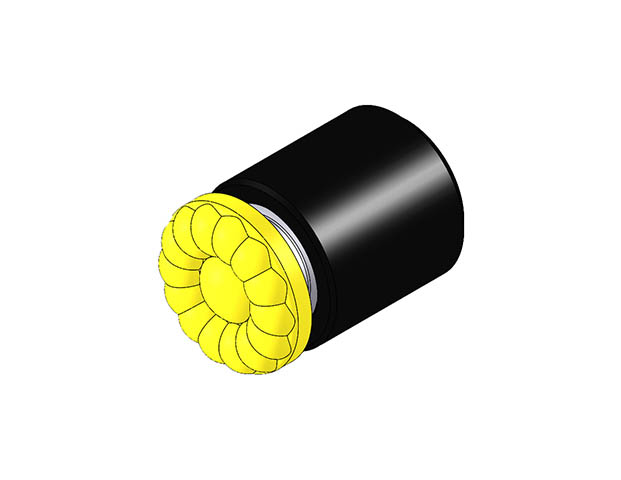

Base Design Swivot - 10 mm Dia X 10.5 mm - Sof-Top - 35 Dur
| Part # | A Dia mm | B Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Tap mm | G Thread Length mm | Ball Dia mm | Durometer Shore A | Urethane Thickness mm | Load Rating lbs | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBBU-1012-FC-35UR | 10 | 10.5 | 10 | 4 | 28 | M4x0.7 | 3.5 | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MBBU-1012-FC-60UR | 10 | 10.5 | 10 | 4 | 28 | M4x0.7 | 3.5 | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MBBU-1012-FC-80UR | 10 | 10.5 | 10 | 4 | 28 | M4x0.7 | 3.5 | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MBBU-1025-FC-35UR | 10 | 23.5 | 10 | 4 | 28 | M4x0.7 | 9 | 7 | 35 | 2 | 8 | MBUB-070-FC-35UR | |
| MBBU-1025-FC-60UR | 10 | 23.5 | 10 | 4 | 28 | M4x0.7 | 9 | 7 | 60 | 2 | 25 | MBUB-070-FC-60UR | |
| MBBU-1025-FC-80UR | 10 | 23.5 | 10 | 4 | 28 | M4x0.7 | 9 | 7 | 80 | 2 | 65 | MBUB-070-FC-80UR | |
| MBBU-1316-FC-35UR | 13 | 14.5 | 13 | 5 | 28 | M5x0.8 | 6.5 | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MBBU-1316-FC-60UR | 13 | 14.5 | 13 | 5 | 28 | M5x0.8 | 6.5 | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MBBU-1316-FC-80UR | 13 | 14.5 | 13 | 5 | 28 | M5x0.8 | 6.5 | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MBBU-1325-FC-35UR | 13 | 23.5 | 13 | 5 | 28 | M5x0.8 | 9 | 10 | 35 | 2 | 40 | MBUB-100-FC-35UR | |
| MBBU-1325-FC-60UR | 13 | 23.5 | 13 | 5 | 28 | M5x0.8 | 9 | 10 | 60 | 2 | 75 | MBUB-100-FC-60UR | |
| MBBU-1325-FC-80UR | 13 | 23.5 | 13 | 5 | 28 | M5x0.8 | 9 | 10 | 80 | 2 | 150 | MBUB-100-FC-80UR | |
| MBBU-1722-FC-35UR | 17 | 18 | 16 | 5 | 28 | M6x1.0 | 7.5 | 13 | 35 | 2 | 55 | MBUB-130-FC-35UR | |
| MBBU-1722-FC-60UR | 17 | 18 | 16 | 5 | 28 | M6x1.0 | 7.5 | 13 | 60 | 2 | 140 | MBUB-130-FC-60UR | |
| MBBU-1722-FC-80UR | 17 | 18 | 16 | 5 | 28 | M6x1.0 | 7.5 | 13 | 80 | 2 | 215 | MBUB-130-FC-80UR | |
| MBBU-1924-FC-35UR | 19 | 20 | 21 | 6 | 24 | M8x1.25 | 8.5 | 15 | 35 | 2 | 150 | MBUB-150-FC-35UR | |
| MBBU-1924-FC-60UR | 19 | 20 | 21 | 6 | 24 | M8x1.25 | 8.5 | 15 | 60 | 2 | 340 | MBUB-150-FC-60UR | |
| MBBU-1924-FC-80UR | 19 | 20 | 21 | 6 | 24 | M8x1.25 | 8.5 | 15 | 80 | 2 | 525 | MBUB-150-FC-80UR | |
| MBBU-2428-FC-35UR | 24 | 24 | 23 | 6 | 24 | M10x1.50 | 9 | 20 | 35 | 2 | 225 | MBUB-200-FC-35UR | |
| MBBU-2428-FC-60UR | 24 | 24 | 23 | 6 | 24 | M10x1.50 | 9 | 20 | 60 | 2 | 400 | MBUB-200-FC-60UR | |
| MBBU-2428-FC-80UR | 24 | 24 | 23 | 6 | 24 | M10x1.50 | 9 | 20 | 80 | 2 | 600 | MBUB-200-FC-80UR |
