Grippers - Hex Head Adjustable - Serrated - Replaceable Pad Design (AJH)
AJH-0370
AJH Adjustable Gripper - 3/8-16 X 1/2 in

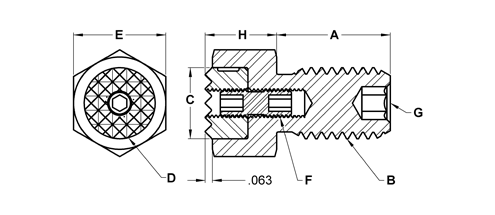

| Part # | A Shank in | B Thread | C Contact Diameter in | D Gripper in | E Hex in | F Tap | G Int Hex in | H Head and Gripper in |
|
|---|---|---|---|---|---|---|---|---|---|
| AJH-0230 | 1/2 | 3/8-24 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 3/16 | 1/2 | |
| AJH-0231 | 1 | 3/8-24 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 1/8 | 1/2 | |
| AJH-0231X1.5 | 1-1/2 | 3/8-24 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 1/8 | 1/2 | |
| AJH-0240 | 1 | 1/2-20 | 1/2 | HS-50 | 11/16 | #10-32 L.H. | 3/16 | 5/8 | |
| AJH-0370 | 1/2 | 3/8-16 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 3/16 | 1/2 | |
| AJH-0375 | 1 | 3/8-16 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 1/8 | 1/2 | |
| AJH-0375X1.5 | 1-1/2 | 3/8-16 | 3/8 | HS-40 | 9/16 | #10-32 L.H. | 1/8 | 1/2 | |
| AJH-0500 | 1-1/2 | 1/2-20 | 1/2 | HS-50 | 11/16 | #10-32 L.H. | 3/16 | 5/8 | |
| AJH-0510 | 1 | 1/2-13 | 1/2 | HS-50 | 11/16 | #10-32 L.H. | 3/16 | 5/8 | |
| AJH-0515 | 1-1/2 | 1/2-13 | 1/2 | HS-50 | 11/16 | #10-32 L.H. | 3/16 | 5/8 | |
| AJH-0620X1 | 1 | 5/8-18 | 5/8 | HS-62 | 13/16 | 1/4-28 L.H. | 1/4 | 5/8 | |
| AJH-0620X2 | 2 | 5/8-18 | 5/8 | HS-62 | 13/16 | 1/4-28 L.H. | 1/4 | 5/8 | |
| AJH-0625X1 | 1 | 5/8-11 | 5/8 | HS-62 | 13/16 | 1/4-28 L.H. | 1/4 | 5/8 | |
| AJH-0625X2 | 2 | 5/8-11 | 5/8 | HS-62 | 13/16 | 1/4-28 L.H. | 1/4 | 5/8 | |
| AJH-0750X1 | 1 | 3/4-16 | 3/4 | HS-75 | 15/16 | 1/4-28 L.H. | 5/16 | 5/8 | |
| AJH-0750X2.5 | 2-1/2 | 3/4-16 | 3/4 | HS-75 | 15/16 | 1/4-28 L.H. | 5/16 | 5/8 | |
| AJH-0755X1 | 1 | 3/4-10 | 3/4 | HS-75 | 15/16 | 1/4-28 L.H. | 5/16 | 5/8 | |
| AJH-0755X2.5 | 2-1/2 | 3/4-10 | 3/4 | HS-75 | 15/16 | 1/4-28 L.H. | 5/16 | 5/8 |
AJH-ADJUSTA GRIP with replaceable gripper
