Grippers - AccuGrip Adjustable - Carbide Tipped (ACG)
ACG-0230-3

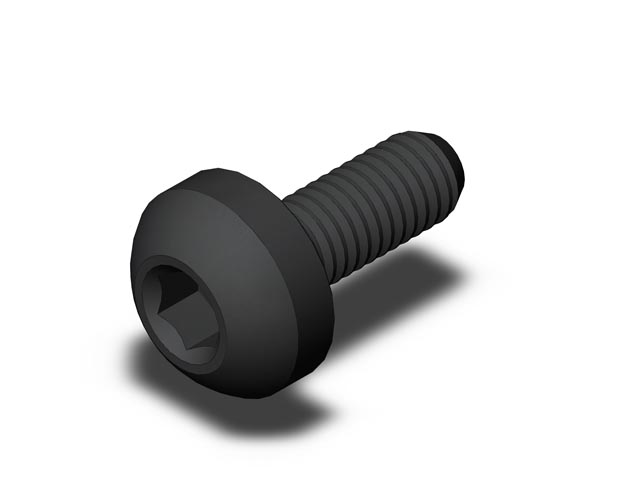

Accugrip Adjustable Gripper Lock Screw

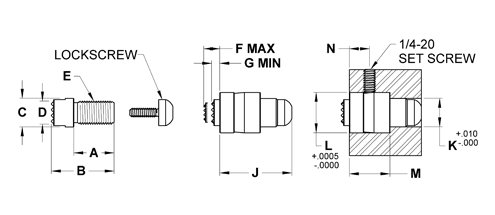

| Part # | A in | B in | C in | D in | E Thread | F Max in | G Min mm | J in | K in | L in | M in | N in | Adj Gripper | Housing Part Number | Lockscrew Part Number | Tooth Pattern | Complete Assembly |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACG-0230-2 | ||||||||||||||||||
| ACG-0230-3 | ||||||||||||||||||
| ACG-0230-F | 17/32 | 15/16 | .499 | 3/8 | 3/8-24 | 9/32 | 5/32 | 1 | 1/2 | .625 | 11/16 | 13/32 | ACG-0230-1F | ACG-0230-2 | ACG-0230-3 | Smooth | 3/8" THD. SMTH. TIP | |
| ACG-0230-S | 17/32 | 15/16 | .499 | 3/8 | 3/8-24 | 9/32 | 5/32 | 1 | 1/2 | .625 | 11/16 | 13/32 | ACG-0230-1S | ACG-0230-2 | ACG-0230-3 | Fine | 3/8" THD. SERR. TIP | |
| ACG-0240-2 | ||||||||||||||||||
| ACG-0240-3 | ||||||||||||||||||
| ACG-0240-F | 7/8 | 1-3/8 | .624 | 1/2 | 1/2-20 | 5/16 | 3/16 | 1-9/16 | 21/32 | .875 | 7/8 | 7/16 | ACG-0240-1F | ACG-0240-2 | ACG-0240-3 | Smooth | 1/2" THD. SMTH. TIP | |
| ACG-0240-S | 7/8 | 1-3/8 | .624 | 1/2 | 1/2-20 | 5/16 | 3/16 | 1-9/16 | 21/32 | .875 | 7/8 | 7/16 | ACG-0240-1S | ACG-0240-2 | ACG-0240-3 | Fine | 1/2" THD. SERR. TIP |
ACCUGRIP-ADJUSTABLE GRIPPERS are designed to fit into chuck jaws
