Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT)
MCT-100

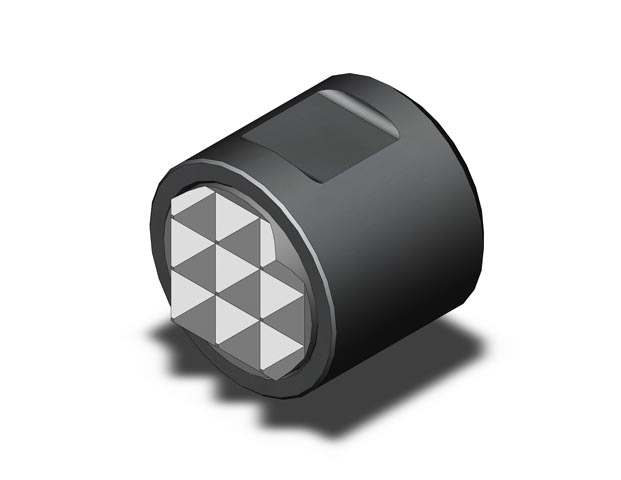

Carbide Tipped Gripper - Round - 10 mm Dia X 10 mm - Extra Fine

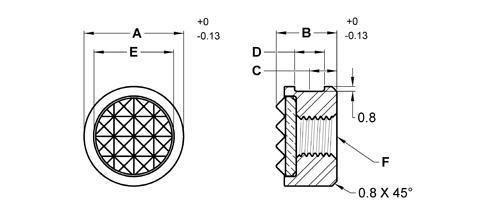

| Part # | A OD mm | B Height mm | C Flat Position mm | D Flat mm | E Contact Diameter mm | F Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|---|
| MCT-100 | 10 | 10 | 4.5 | 4.75 | 5/16 | M5x0.8 | EF | |
| MCT-102 | 10 | 12 | 6.0 | 4.75 | 5/16 | M5x0.8 | EF | |
| MCT-120 | 12 | 10 | 4.5 | 4.75 | 3/8 | M5x0.8 | Fine | |
| MCT-122 | 12 | 12 | 6.0 | 4.75 | 3/8 | M5x0.8 | Fine | |
| MCT-160 | 16 | 10 | 4.5 | 4.75 | 1/2 | M6x1.0 | Fine | |
| MCT-162 | 16 | 12 | 6.0 | 4.75 | 1/2 | M6x1.0 | Fine | |
| MCT-200 | 20 | 10 | 4.5 | 4.75 | 5/8 | M6x1.0 | Fine | |
| MCT-202 | 20 | 12 | 6.0 | 4.75 | 5/8 | M6x1.0 | Fine | |
| MCT-250 | 25 | 10 | 4.5 | 4.75 | 3/4 | M6x1.0 | Fine | |
| MCT-252 | 25 | 12 | 6.0 | 4.75 | 3/4 | M6x1.0 | Fine |
