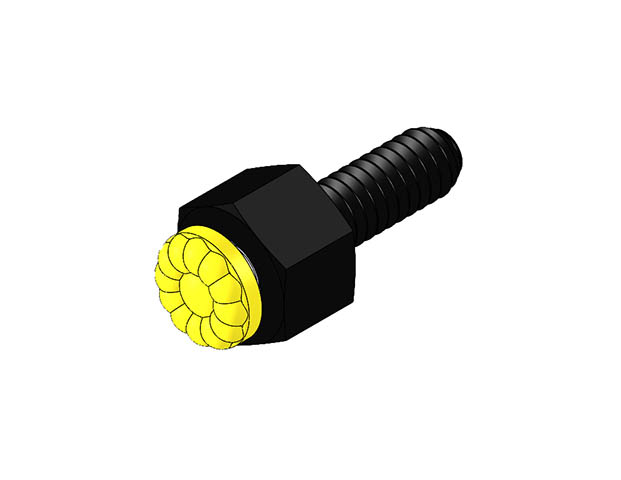

Hex Head Swivotsฎ Gripper Assembly - SofTopฎ Urethane Surface Cone - Inch (BUH-FC-UR)
BUH-0124-FC-35UR
Hex Design Swivot - 10-24 X 1/2 - Sof-Top - 35 Dur

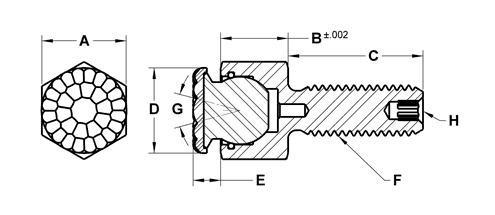

| Part # | A Hex Size in | B Head Height in | C Thread Length in | D Contact Dia in | E Standoff in | F Thread | G Swivel Degrees | H Int Hex in | Ball Dia in | Durometer Shore A | Urethane Thickness | Load Compression lbs | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0124-FC-35UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-24 | 28 | | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BUH-0124-FC-60UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-24 | 28 | | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BUH-0124-FC-80UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-24 | 28 | | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BUH-0124X1-FC-35UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-24 | 28 | | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BUH-0124X1-FC-60UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-24 | 28 | | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BUH-0124X1-FC-80UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-24 | 28 | | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BUH-0132-FC-35UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-32 | 28 | | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BUH-0132-FC-60UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-32 | 28 | | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BUH-0132-FC-80UR | 3/8 | 1/4 | 1/2 | .315 | .143 | 10-32 | 28 | | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BUH-0132X1-FC-35UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-32 | 28 | | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BUH-0132X1-FC-60UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-32 | 28 | | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BUH-0132X1-FC-80UR | 3/8 | 1/4 | 1 | .315 | .143 | 10-32 | 28 | | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BUH-0230-FC-35UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0230-FC-60UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0230-FC-80UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0231-FC-35UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0231-FC-60UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0231-FC-80UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0231X1.5-FC-35UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0231X1.5-FC-60UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0231X1.5-FC-80UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-24 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0240-FC-35UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| BUH-0240-FC-60UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| BUH-0240-FC-80UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| BUH-0250-FC-35UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0250-FC-60UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0250-FC-80UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0251-FC-35UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0251-FC-60UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0251-FC-80UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0251X1.5-FC-35UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0251X1.5-FC-60UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0251X1.5-FC-80UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-20 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0280-FC-35UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0280-FC-60UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0280-FC-80UR | 7/16 | 5/16 | 1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0281-FC-35UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0281-FC-60UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0281-FC-80UR | 7/16 | 5/16 | 1 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0281X1.5-FC-35UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BUH-0281X1.5-FC-60UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BUH-0281X1.5-FC-80UR | 7/16 | 5/16 | 1-1/2 | .394 | .174 | 1/4-28 | 28 | | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BUH-0310-FC-35UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0310-FC-60UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0310-FC-80UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0312-FC-35UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0312-FC-60UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0312-FC-80UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0312X1.5-FC-35UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0312X1.5-FC-60UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0312X1.5-FC-80UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-18 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0320-FC-35UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0320-FC-60UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0320-FC-80UR | 1/2 | 3/8 | 1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0321-FC-35UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0321-FC-60UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0321-FC-80UR | 1/2 | 3/8 | 1 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0321X1.5-FC-35UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BUH-0321X1.5-FC-60UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BUH-0321X1.5-FC-80UR | 1/2 | 3/8 | 1-1/2 | .512 | .205 | 5/16-24 | 28 | | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BUH-0370-FC-35UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0370-FC-60UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0370-FC-80UR | 5/8 | 1/2 | 1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0375-FC-35UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0375-FC-60UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0375-FC-80UR | 5/8 | 1/2 | 1 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0375X1.5-FC-35UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BUH-0375X1.5-FC-60UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BUH-0375X1.5-FC-80UR | 5/8 | 1/2 | 1-1/2 | .630 | .205 | 3/8-16 | 28 | 1/8 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BUH-0500-FC-35UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| BUH-0500-FC-60UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| BUH-0500-FC-80UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-20 | 33 | 3/16 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| BUH-0510-FC-35UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| BUH-0510-FC-60UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| BUH-0510-FC-80UR | 13/16 | 5/8 | 1 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| BUH-0515-FC-35UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| BUH-0515-FC-60UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| BUH-0515-FC-80UR | 13/16 | 5/8 | 1-1/2 | .827 | .236 | 1/2-13 | 33 | 3/16 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| BUH-0620-FC-35UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| BUH-0620-FC-60UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| BUH-0620-FC-80UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR | |
| BUH-0620X2-FC-35UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| BUH-0620X2-FC-60UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| BUH-0620X2-FC-80UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-18 | 33 | 1/4 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR | |
| BUH-0625-FC-35UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| BUH-0625-FC-60UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| BUH-0625-FC-80UR | 15/16 | 11/16 | 1 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR | |
| BUH-0625X2-FC-35UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| BUH-0625X2-FC-60UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| BUH-0625X2-FC-80UR | 15/16 | 11/16 | 2 | .906 | .236 | 5/8-11 | 33 | 1/4 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR |
