Base Design Swivots® Gripper Assembly - Diamond Surface Cone - Inch (BBU-FC-DS)
BBU-100-FC-DS

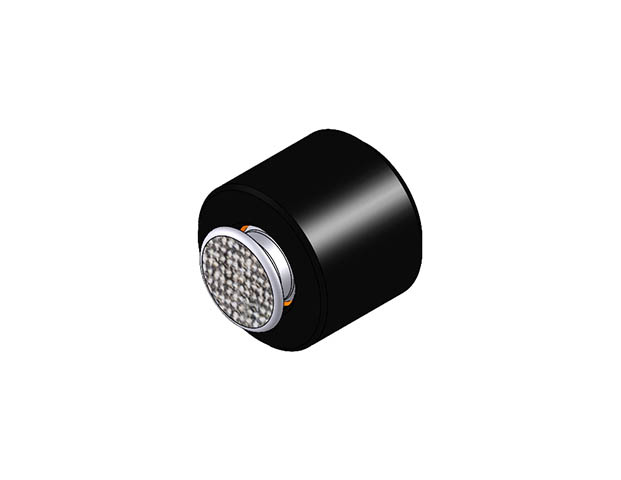

Base Design Swivot - 3/8 Dia X 5/16 - Diamond Surface

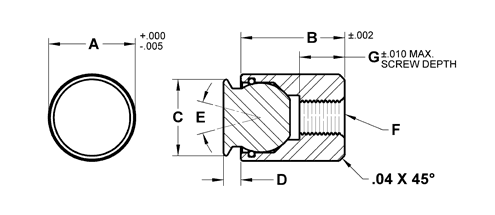

| Part # | A Dia in | B Body in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap in | G Thread Depth in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-FC-DS | 3/8 | 5/16 | .236 | .063 | 28 | #4-40 | 1/4 | 3/16 | BUB-187-FC-DS | 1,835 | |
| BBU-105-FC-DS | 3/8 | 7/16 | .236 | .063 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-FC-DS | 1,835 | |
| BBU-107-FC-DS | 3/8 | 11/16 | .236 | .063 | 28 | #4-40 | 5/16 | 3/16 | BUB-187-FC-DS | 1,835 | |
| BBU-200-FC-DS | 7/16 | 3/8 | .315 | .094 | 28 | #8-32 | 5/32 | 9/32 | BUB-200-FC-DS | 3,339 | |
| BBU-201-FC-DS | 7/16 | 15/16 | .315 | .094 | 28 | #8-32 | 1/2 | 9/32 | BUB-200-FC-DS | 3,339 | |
| BBU-300-FC-DS | 1/2 | 1/2 | .433 | .125 | 28 | #10-32 | 5/32 | 3/8 | BUB-300-FC-DS | 4,697 | |
| BBU-301-FC-DS | 1/2 | 1 | .433 | .125 | 28 | #10-32 | 5/8 | 3/8 | BUB-300-FC-DS | 4,697 | |
| BBU-500-FC-DS | 5/8 | 3/4 | .551 | .125 | 28 | 1/4-28 | 1/4 | 1/2 | BUB-500-FC-DS | 5,849 | |
| BBU-600-FC-DS | 13/16 | 7/8 | .748 | .156 | 32 | 5/16-24 | 11/32 | 5/8 | BUB-600-FC-DS | 10,925 | |
| BBU-700-FC-DS | 15/16 | 7/8 | .827 | .156 | 32 | 3/8-24 | 9/32 | 3/4 | BUB-700-FC-DS | 13,325 |
