Base Design Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MBBU-DC)
MBBU-1012-DC

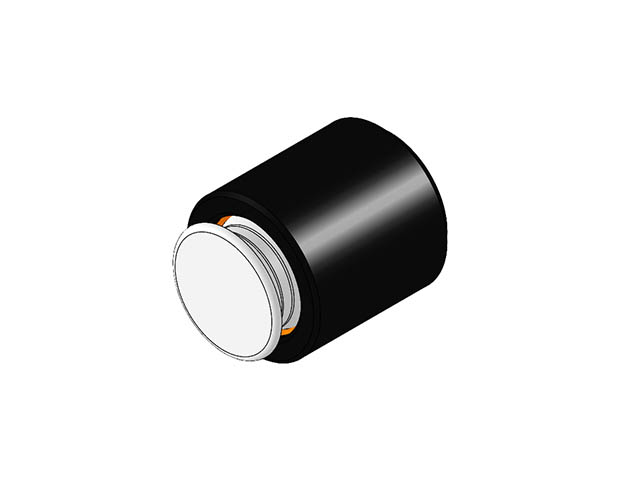

Base Design Swivot - 10 mm Dia X 10.5 mm - Delrin Cone

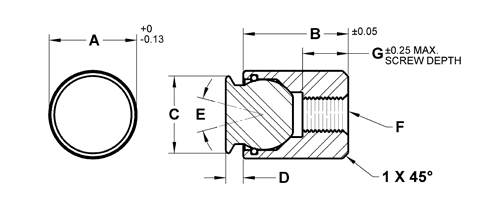

| Part # | A OD mm | B Body mm | C Contact Diameter mm | D Standoff mm | E Swivel Degrees | F Tap mm | G Thread Length mm | Ball Diameter mm | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MBBU-1012-DC | 10 | 10.5 | 8 | 2 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-DC | |
| MBBU-1025-DC | 10 | 23.5 | 8 | 2 | 28 | M4x0.7 | 9 | 7 | MBUB-070-DC | |
| MBBU-1316-DC | 13 | 14.5 | 11 | 3 | 28 | M5x0.8 | 6.5 | 10 | MBUB-100-DC | |
| MBBU-1325-DC | 13 | 23.5 | 11 | 3 | 28 | M5x0.8 | 9 | 10 | MBUB-100-DC | |
| MBBU-1722-DC | 17 | 18 | 14 | 3 | 28 | M6x1.0 | 7.5 | 13 | MBUB-130-DC | |
| MBBU-1924-DC | 19 | 20 | 19 | 4 | 24 | M8x1.25 | 8.5 | 15 | MBUB-150-DC | |
| MBBU-2428-DC | 24 | 24 | 21 | 4 | 24 | M10x1.5 | 9 | 20 | MBUB-200-DC |
