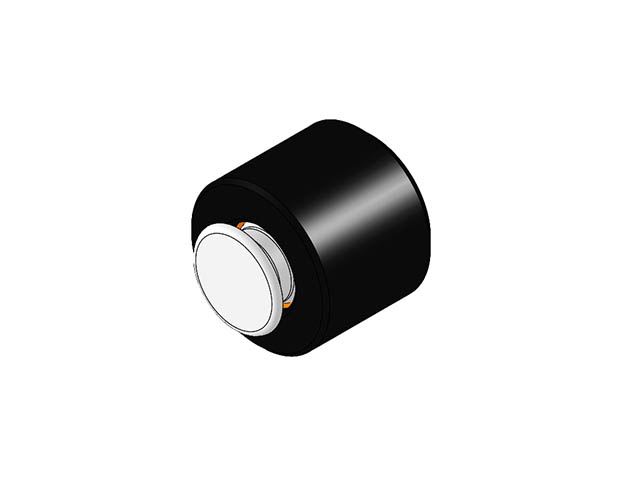

Base Design Swivots® Gripper Assembly - Flat Delrin Cone - Inch (BBU-DC)
BBU-100-DC
Base Design Swivot - 3/8 Dia X 5/16 - Delrin Cone

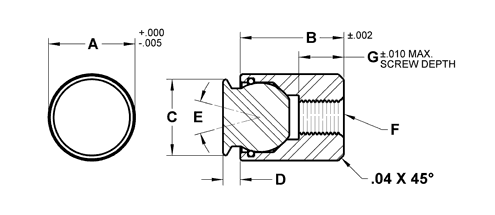

| Part # | A Dia in | B Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap | G Thread Length in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-DC | 3/8 | 5/16 | .236 | .063 | .063 | 28 | #4-40 | 1/4 | 3/16 | |
| BBU-105-DC | 3/8 | 7/16 | .236 | .063 | .063 | 28 | #4-40 | 5/16 | 3/16 | |
| BBU-107-DC | 3/8 | 11/16 | .236 | .063 | .063 | 28 | #4-40 | 5/16 | 3/16 | |
| BBU-200-DC | 7/16 | 3/8 | .315 | .094 | .094 | 28 | #8-32 | 5/32 | 9/32 | |
| BBU-201-DC | 7/16 | 15/16 | 315 | .094 | .094 | 28 | #8-32 | 1/2 | 9/32 | |
| BBU-300-DC | 1/2 | 1/2 | .433 | .125 | .125 | 28 | #10-32 | 5/32 | 3/8 | |
| BBU-301-DC | 1/2 | 1 | .433 | .125 | .125 | 28 | #10-32 | 5/8 | 3/8 | |
| BBU-500-DC | 5/8 | 3/4 | .551 | .125 | .125 | 28 | 1/4-28 | 1/4 | 1/2 | |
| BBU-600-DC | 13/16 | 7/8 | .748 | .156 | .156 | 32 | 5/16-24 | 11/32 | 5/8 | |
| BBU-700-DC | 15/16 | 7/8 | .827 | .156 | .156 | 32 | 3/8-24 | 9/32 | 3/4 |
