Thrust Screws - Headed Design - Diamond Surface Cone - Inch (TSH-FC-DS)
TSH-0375-FC-DS

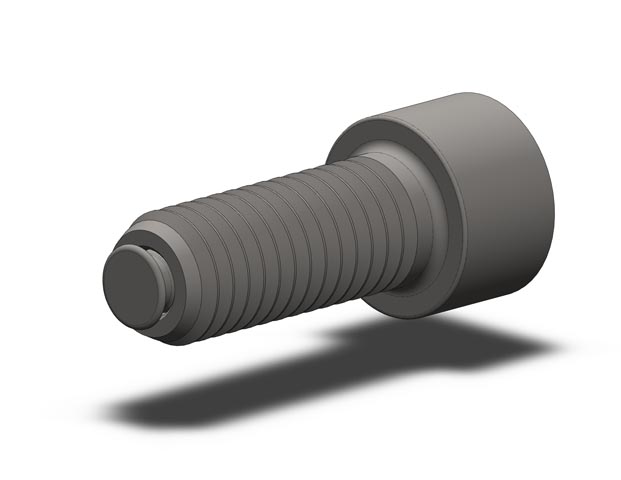

Headed Thrust Screw - Diamond Surface - 3/8-16 X 1

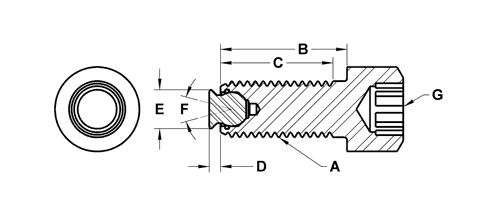

| Part # | A Thread in | B Shank in | C Thread Length in | D Standoff in | E Contact Diameter in | F Swivel Degrees | G Int Hex in | Ball Diameter in | Ball Only Part No. in | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| TSH-0231-FC-DS | 3/8-24 | 1 | 1 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0231X1.5-FC-DS | 3/8-24 | 1-1/2 | 1-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0231X2.5-FC-DS | 3/8-24 | 2-1/2 | 1-3/8 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0231X2-FC-DS | 3/8-24 | 2 | 1-3/8 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0375-FC-DS | 3/8-16 | 1 | 1 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0375X1.5-FC-DS | 3/8-16 | 1-1/2 | 1-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0375X2.5-FC-DS | 3/8-16 | 2-1/2 | 1-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0375X2-FC-DS | 3/8-16 | 2 | 1-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSH-0500X1.25-FC-DS | 1/2-20 | 1-1/4 | 1-1/4 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0500X1.5-FC-DS | 1/2-20 | 1-1/2 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0500X2.5-FC-DS | 1/2-20 | 2-1/2 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0500X2-FC-DS | 1/2-20 | 2 | 2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0500X3-FC-DS | 1/2-20 | 3 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0510X1.25-FC-DS | 1/2-13 | 1-1/4 | 1-1/4 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0510X1.5-FC-DS | 1/2-13 | 1-1/2 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0510X2.5-FC-DS | 1/2-13 | 2-1/2 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0510X2-FC-DS | 1/2-13 | 2 | 2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0510X3-FC-DS | 1/2-13 | 3 | 1-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSH-0620-FC-DS | 5/8-18 | 1-1/2 | 1-1/2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0620X2.5-FC-DS | 5/8-18 | 2-1/2 | 1-3/4 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0620X2-FC-DS | 5/8-18 | 2 | 2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0620X3-FC-DS | 5/8-18 | 3 | 1-3/4 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0625-FC-DS | 5/8-11 | 1-1/2 | 1-1/2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0625X2.5-FC-DS | 5/8-11 | 2-1/2 | 1-3/4 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0625X2-FC-DS | 5/8-11 | 2 | 2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0625X3-FC-DS | 5/8-11 | 3 | 1-3/4 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSH-0750X2.5-FC-DS | 3/4-16 | 2-1/2 | 2-1/2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-0750X2-FC-DS | 3/4-16 | 2 | 2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-0750X3-FC-DS | 3/4-16 | 3 | 2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-0755X2.5-FC-DS | 3/4-10 | 2-1/2 | 2-1/2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-0755X2-FC-DS | 3/4-10 | 2 | 2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-0755X3-FC-DS | 3/4-10 | 3 | 2 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSH-1108X2-FC-DS | 1-8 | 2 | 2 | .156 | .748 | 32 | 3/4 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TSH-1108X3-FC-DS | 1-8 | 3 | 3 | .156 | .748 | 32 | 3/4 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TSH-1108X4-FC-DS | 1-8 | 4 | 2-1/2 | .156 | .748 | 32 | 3/4 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TSH-1114X2-FC-DS | 1-14 | 2 | 2 | .156 | .827 | 32 | 3/4 | 3/4 | BUB-700-FC-DS | 17,210 | |
| TSH-1114X3-FC-DS | 1-14 | 3 | 3 | .156 | .827 | 32 | 3/4 | 3/4 | BUB-700-FC-DS | 17,210 | |
| TSH-1114X4-FC-DS | 1-14 | 4 | 2-1/2 | .156 | .827 | 32 | 3/4 | 3/4 | BUB-700-FC-DS | 17,210 | |
| TSHF-0231X2.5-FC-DS | 3/8-24 | 2-1/2 | 2-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSHF-0231X2-FC-DS | 3/8-24 | 2 | 2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSHF-0375X2.5-FC-DS | 3/8-16 | 2-1/2 | 2-1/2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSHF-0375X2-FC-DS | 3/8-16 | 2 | 2 | .063 | .236 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TSHF-0500X2.5-FC-DS | 1/2-20 | 2-1/2 | 2-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSHF-0500X3-FC-DS | 1/2-20 | 3 | 3 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSHF-0510X2.5-FC-DS | 1/2-13 | 2-1/2 | 2-1/2 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSHF-0510X3-FC-DS | 1/2-13 | 3 | 3 | .094 | .315 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TSHF-0620X2.5-FC-DS | 5/8-18 | 2-1/2 | 2-1/2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSHF-0620X3-FC-DS | 5/8-18 | 3 | 3 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSHF-0625X2.5-FC-DS | 5/8-11 | 2-1/2 | 2-1/2 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSHF-0625X3-FC-DS | 5/8-11 | 3 | 3 | .125 | .433 | 28 | 1/2 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TSHF-0750X3-FC-DS | 3/4-16 | 3 | 3 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSHF-0755X3-FC-DS | 3/4-10 | 3 | 3 | .125 | .551 | 28 | 5/8 | 1/2 | BUB-500-FC-DS | 8,150 | |
| TSHF-1108X4-FC-DS | 1-8 | 4 | 4 | .156 | .748 | 32 | 3/4 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TSHF-1114X4-FC-DS | 1-14 | 4 | 4 | .156 | .827 | 32 | 3/4 | 3/4 | BUB-700-FC-DS | 17,210 |
