Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Inch (TBU-FC-DS)
TBU-0370-FC-DS

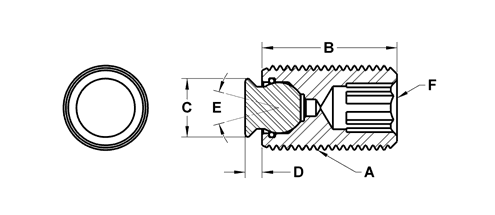

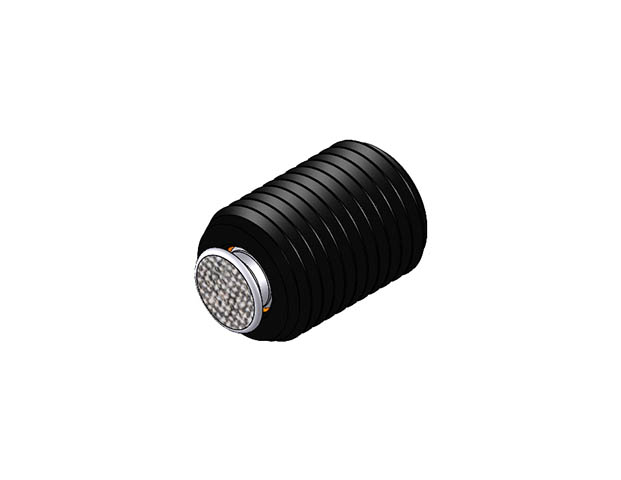

Threaded Design Swivot - 3/8-16 X 1/2 - Diamond Surface
| Part # | A Thread in | B Thread Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TBU-0230-FC-DS | 3/8-24 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0231-FC-DS | 3/8-24 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0231X2-FC-DS | 3/8-24 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0231X3-FC-DS | 3/8-24 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0370-FC-DS | 3/8-16 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0375-FC-DS | 3/8-16 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0375X2-FC-DS | 3/8-16 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0375X3-FC-DS | 3/8-16 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-FC-DS | 1,763 | |
| TBU-0500-FC-DS | 1/2-20 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0500X2-FC-DS | 1/2-20 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0500X3-FC-DS | 1/2-20 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0503-FC-DS | 1/2-20 | 3/4 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0510-FC-DS | 1/2-13 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0510X2-FC-DS | 1/2-13 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0510X3-FC-DS | 1/2-13 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0513-FC-DS | 1/2-13 | 3/4 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-FC-DS | 4,527 | |
| TBU-0620-FC-DS | 5/8-18 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0620X2-FC-DS | 5/8-18 | 2 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0620X3-FC-DS | 5/8-18 | 3 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0625-FC-DS | 5/8-11 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0625X2-FC-DS | 5/8-11 | 2 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0625X3-FC-DS | 5/8-11 | 3 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-FC-DS | 6,131 | |
| TBU-0750-FC-DS | 3/4-16 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-0750X2-FC-DS | 3/4-16 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-0750X3-FC-DS | 3/4-16 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-0755-FC-DS | 3/4-10 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-0755X2-FC-DS | 3/4-10 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-0755X3-FC-DS | 3/4-10 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-FC-DS | 6,131 | |
| TBU-1108-FC-DS | 1-8 | 1 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TBU-1108X2-FC-DS | 1-8 | 2 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TBU-1108X3-FC-DS | 1-8 | 3 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-FC-DS | 14,757 | |
| TBU-1114-FC-DS | 1-14 | 1 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-FC-DS | 17,210 | |
| TBU-1114X2-FC-DS | 1-14 | 2 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-FC-DS | 17,210 | |
| TBU-1114X3-FC-DS | 1-14 | 3 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-FC-DS | 17,210 |
