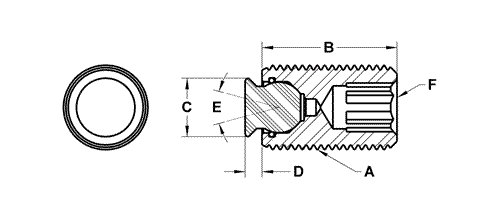

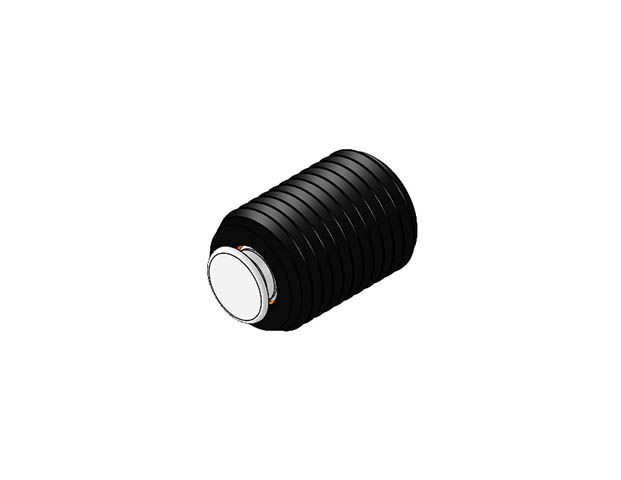

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC)
TBU-0370-DC
Threaded Design Swivot - 3/8-16 X 1/2 - Delrin Cone
| Part # | A Thread | B Thread Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|
| TBU-0230-DC | 3/8-24 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0231-DC | 3/8-24 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0231X2-DC | 3/8-24 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0231X3-DC | 3/8-24 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0370-DC | 3/8-16 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0375-DC | 3/8-16 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0375X2-DC | 3/8-16 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0375X3-DC | 3/8-16 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | BUB-187-DC | |
| TBU-0500-DC | 1/2-20 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0500X2-DC | 1/2-20 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0500X3-DC | 1/2-20 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0503-DC | 1/2-20 | 3/4 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0510-DC | 1/2-13 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0510X2-DC | 1/2-13 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0510X3-DC | 1/2-13 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0513-DC | 1/2-13 | 3/4 | .315 | .094 | 28 | 1/4 | 9/32 | BUB-200-DC | |
| TBU-0620-DC | 5/8-18 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0620X2-DC | 5/8-18 | 2 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0620X3-DC | 5/8-18 | 3 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0625-DC | 5/8-11 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0625X2-DC | 5/8-11 | 2 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0625X3-DC | 5/8-11 | 3 | .433 | .125 | 28 | 5/16 | 3/8 | BUB-300-DC | |
| TBU-0750-DC | 3/4-16 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-0750X2-DC | 3/4-16 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-0750X3-DC | 3/4-16 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-0755-DC | 3/4-10 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-0755X2-DC | 3/4-10 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-0755X3-DC | 3/4-10 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | BUB-500-DC | |
| TBU-1108-DC | 1-8 | 1 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-DC | |
| TBU-1108X2-DC | 1-8 | 2 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-DC | |
| TBU-1108X3-DC | 1-8 | 3 | .748 | .156 | 32 | 3/8 | 5/8 | BUB-600-DC | |
| TBU-1114-DC | 1-14 | 1 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-DC | |
| TBU-1114X2-DC | 1-14 | 2 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-DC | |
| TBU-1114X3-DC | 1-14 | 3 | .827 | .156 | 32 | 3/8 | 3/4 | BUB-700-DC |
