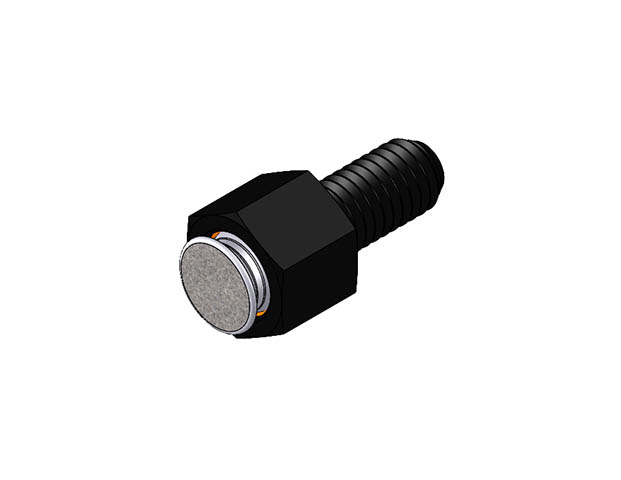

Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MBUH-FC-DS)
MBUH-06012-FC-DS
Hex Design Swivot - M6 X 1.0 X 12 mm - Diamond Surface

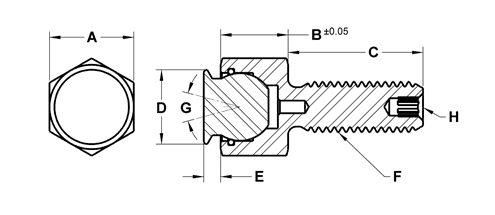

| Part # | A Hex mm | B Head Height mm | C Thread Length mm | D Contact Dia mm | E Standoff mm | F Thread mm | G Swivel Degrees | H Int Hex mm | Ball Dia mm | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBUH-06012-FC-DS | 10 | 8 | 12 | 8 | 2 | M6x1.0 | 28 | — | 7 | MBUB-070-FC-DS | 2,061 | |
| MBUH-06025-FC-DS | 10 | 8 | 25 | 8 | 2 | M6x1.0 | 28 | — | 7 | MBUB-070-FC-DS | 2,061 | |
| MBUH-06040-FC-DS | 10 | 8 | 40 | 8 | 2 | M6x1.0 | 28 | — | 7 | MBUB-070-FC-DS | 2,061 | |
| MBUH-08012-FC-DS | 13 | 11.5 | 12 | 11 | 3 | M8x1.25 | 28 | — | 10 | MBUB-100-FC-DS | 3,450 | |
| MBUH-08025-FC-DS | 13 | 11.5 | 25 | 11 | 3 | M8x1.25 | 28 | — | 10 | MBUB-100-FC-DS | 3,450 | |
| MBUH-08040-FC-DS | 13 | 11.5 | 40 | 11 | 3 | M8x1.25 | 28 | — | 10 | MBUB-100-FC-DS | 3,450 | |
| MBUH-10015-FC-DS | 17 | 13 | 15 | 14 | 3 | M10x1.5 | 28 | 3 | 13 | MBUB-130-FC-DS | 4,194 | |
| MBUH-10030-FC-DS | 17 | 13 | 30 | 14 | 3 | M10x1.5 | 28 | 3 | 13 | MBUB-130-FC-DS | 4,194 | |
| MBUH-10050-FC-DS | 17 | 13 | 50 | 14 | 3 | M10x1.5 | 28 | 3 | 13 | MBUB-130-FC-DS | 4,194 | |
| MBUH-12020-FC-DS | 19 | 15 | 20 | 19 | 4 | M12x1.5 | 24 | 5 | 15 | MBUB-150-FC-DS | 6,627 | |
| MBUH-12040-FC-DS | 19 | 15 | 40 | 19 | 4 | M12x1.5 | 24 | 5 | 15 | MBUB-150-FC-DS | 6,627 | |
| MBUH-12060-FC-DS | 19 | 15 | 60 | 19 | 4 | M12x1.5 | 24 | 5 | 15 | MBUB-150-FC-DS | 6,627 | |
| MBUH-16025-FC-DS | 24 | 19 | 25 | 21 | 4 | M16x2.0 | 24 | 6 | 20 | MBUB-200-FC-DS | 11,183 | |
| MBUH-16050-FC-DS | 24 | 19 | 50 | 21 | 4 | M16x2.0 | 24 | 6 | 20 | MBUB-200-FC-DS | 11,183 | |
| MBUH-16080-FC-DS | 24 | 19 | 80 | 21 | 4 | M16x2.0 | 24 | 6 | 20 | MBUB-200-FC-DS | 11,183 |
