Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Inch (BUH-FC-DS)
BUH-0124-FC-DS

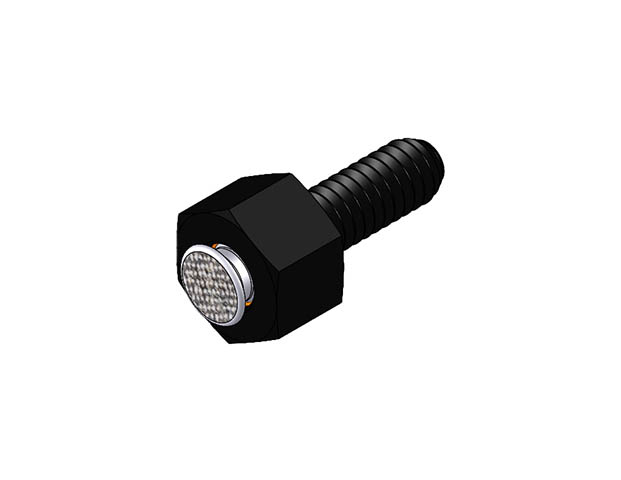

Hex Design Swivot - 10-24 X 1/2 - Diamond Surface

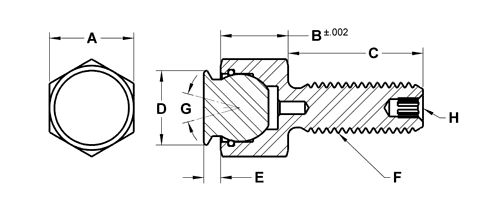

| Part # | A Hex Size in | B Head Height in | C Thread Length in | D Contact Dia in | E Standoff in | F Thread | G Swivel Degrees | H Int Hex in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0124-FC-DS | 3/8 | 1/4 | 1/2 | .236 | .063 | #10-24 | 28 | — | 3/16 | BUB-187-FC-DS | 1,176 | |
| BUH-0124X1-FC-DS | 3/8 | 1/4 | 1 | .236 | .063 | #10-24 | 28 | — | 3/16 | BUB-187-FC-DS | 1,176 | |
| BUH-0132-FC-DS | 3/8 | 1/4 | 1/2 | .236 | .063 | #10-32 | 28 | — | 3/16 | BUB-187-FC-DS | 1,176 | |
| BUH-0132X1-FC-DS | 3/8 | 1/4 | 1 | .236 | .063 | #10-32 | 28 | — | 3/16 | BUB-187-FC-DS | 1,176 | |
| BUH-0230-FC-DS | 5/8 | 1/2 | 1/2 | .551 | .125 | 3/8-24 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0231-FC-DS | 5/8 | 1/2 | 1 | .551 | .125 | 3/8-24 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0231X1.5-FC-DS | 5/8 | 1/2 | 1-1/2 | .551 | .125 | 3/8-24 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0240-FC-DS | 13/16 | 5/8 | 1 | .748 | .156 | 1/2-20 | 32 | 3/16 | 5/8 | BUB-600-FC-DS | 7,178 | |
| BUH-0250-FC-DS | 7/16 | 5/16 | 1/2 | .315 | .094 | 1/4-20 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0251-FC-DS | 7/16 | 5/16 | 1 | .315 | .094 | 1/4-20 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0251X1.5-FC-DS | 7/16 | 5/16 | 1-1/2 | .315 | .094 | 1/4-20 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0280-FC-DS | 7/16 | 5/16 | 1/2 | .315 | .094 | 1/4-28 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0281-FC-DS | 7/16 | 5/16 | 1 | .315 | .094 | 1/4-28 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0281X1.5-FC-DS | 7/16 | 5/16 | 1-1/2 | .315 | .094 | 1/4-28 | 28 | — | 9/32 | BUB-200-FC-DS | 2,441 | |
| BUH-0310-FC-DS | 1/2 | 3/8 | 1/2 | .433 | .125 | 5/16-18 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0312-FC-DS | 1/2 | 3/8 | 1 | .433 | .125 | 5/16-18 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0312X1.5-FC-DS | 1/2 | 3/8 | 1-1/2 | .433 | .125 | 5/16-18 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0320-FC-DS | 1/2 | 3/8 | 1/2 | .433 | .125 | 5/16-24 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0321-FC-DS | 1/2 | 3/8 | 1 | .433 | .125 | 5/16-24 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0321X1.5-FC-DS | 1/2 | 3/8 | 1-1/2 | .433 | .125 | 5/16-24 | 28 | — | 3/8 | BUB-300-FC-DS | 2,792 | |
| BUH-0370-FC-DS | 5/8 | 1/2 | 1/2 | .551 | .125 | 3/8-16 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0375-FC-DS | 5/8 | 1/2 | 1 | .551 | .125 | 3/8-16 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0375X1.5-FC-DS | 5/8 | 1/2 | 1-1/2 | .551 | .125 | 3/8-16 | 28 | 1/8 | 1/2 | BUB-500-FC-DS | 3,446 | |
| BUH-0500-FC-DS | 13/16 | 5/8 | 1-1/2 | .748 | .156 | 1/2-20 | 32 | 3/16 | 5/8 | BUB-600-FC-DS | 7,178 | |
| BUH-0510-FC-DS | 13/16 | 5/8 | 1 | .748 | .156 | 1/2-13 | 32 | 3/16 | 5/8 | BUB-600-FC-DS | 5,937 | |
| BUH-0515-FC-DS | 13/16 | 5/8 | 1-1/2 | .748 | .156 | 1/2-13 | 32 | 3/16 | 5/8 | BUB-600-FC-DS | 5,937 | |
| BUH-0620-FC-DS | 15/16 | 11/16 | 1 | .827 | .156 | 5/8-18 | 32 | 1/4 | 3/4 | BUB-700-FC-DS | 11,874 | |
| BUH-0620X2-FC-DS | 15/16 | 11/16 | 2 | .827 | .156 | 5/8-18 | 32 | 1/4 | 3/4 | BUB-700-FC-DS | 11,874 | |
| BUH-0625-FC-DS | 15/16 | 11/16 | 1 | .827 | .156 | 5/8-11 | 32 | 1/4 | 3/4 | BUB-700-FC-DS | 9,932 | |
| BUH-0625X2-FC-DS | 15/16 | 11/16 | 2 | .827 | .156 | 5/8-11 | 32 | 1/4 | 3/4 | BUB-700-FC-DS | 9,932 |
