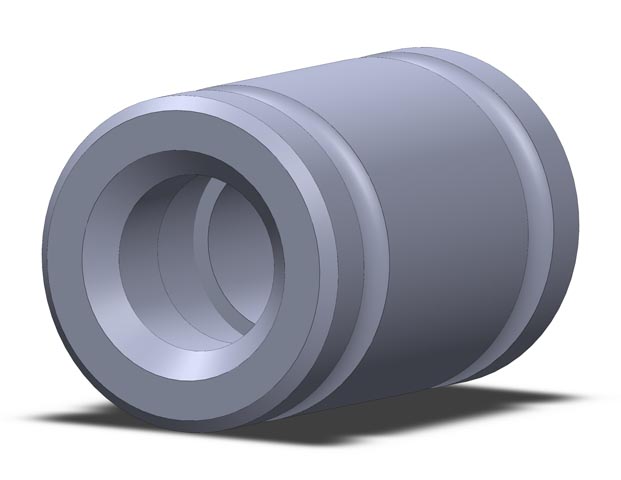

Quick Release Pin End Cap - Plain - Metric (MRC)
MRC-05
Ball Lock Pin End Caps - Plain End - 5 mm

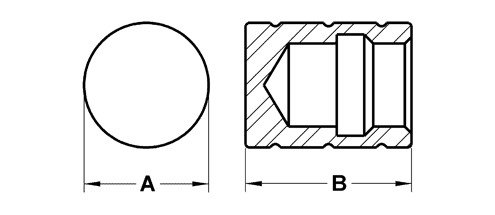

| Part # | Use With Pin Diameter mm | A Dia mm | B Length mm | Grip Length Reduction mm |
|
|---|---|---|---|---|---|
| MRC-05 | 5mm | 9.53 | 14.73 | 3 | |
| MRC-06 | 6mm | 9.53 | 14.73 | 3 | |
| MRC-08 | 8mm | 12.70 | 15.88 | 3 | |
| MRC-10 | 10mm | 14.29 | 18.54 | 5 | |
| MRC-12 | 12mm | 19.05 | 25.40 | 6 | |
| MRC-16 | 16mm | 25.40 | 31.75 | 6 |
