Quick Release Ball Lock Pin - Button Handle - 17-4 SS Shank - 300 Series SS Handle - Metric (MBCCH)
MBCCH-05-010

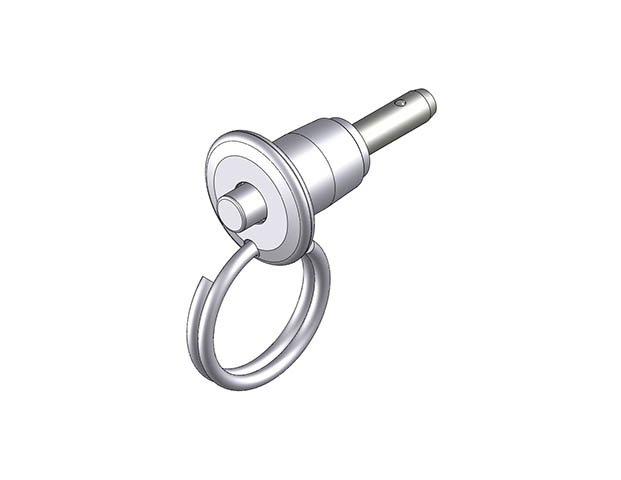

SS Button Handle Pin - 17-4 SS Shank - 5mm Dia X 10mm
| Part # | Nominal Diameter mm | A Max mm | A Min mm | Grip Length mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MBCCH-05-010 | 5 | 4.96 | 4.92 | 10 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-015 | 5 | 4.96 | 4.92 | 15 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-020 | 5 | 4.96 | 4.92 | 20 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-025 | 5 | 4.96 | 4.92 | 25 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-030 | 5 | 4.96 | 4.92 | 30 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-035 | 5 | 4.96 | 4.92 | 35 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-040 | 5 | 4.96 | 4.92 | 40 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-045 | 5 | 4.96 | 4.92 | 45 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-050 | 5 | 4.96 | 4.92 | 50 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-060 | 5 | 4.96 | 4.92 | 60 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-070 | 5 | 4.96 | 4.92 | 70 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-080 | 5 | 4.96 | 4.92 | 80 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-090 | 5 | 4.96 | 4.92 | 90 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-05-100 | 5 | 4.96 | 4.92 | 100 | 5.54 | 6 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-010 | 6 | 5.96 | 5.92 | 10 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-015 | 6 | 5.96 | 5.92 | 15 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-020 | 6 | 5.96 | 5.92 | 20 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-025 | 6 | 5.96 | 5.92 | 25 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-030 | 6 | 5.96 | 5.92 | 30 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-035 | 6 | 5.96 | 5.92 | 35 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-040 | 6 | 5.96 | 5.92 | 40 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-045 | 6 | 5.96 | 5.92 | 45 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-050 | 6 | 5.96 | 5.92 | 50 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-060 | 6 | 5.96 | 5.92 | 60 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-070 | 6 | 5.96 | 5.92 | 70 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-080 | 6 | 5.96 | 5.92 | 80 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-090 | 6 | 5.96 | 5.92 | 90 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-06-100 | 6 | 5.96 | 5.92 | 100 | 6.99 | 7 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-010 | 8 | 7.96 | 7.92 | 10 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-015 | 8 | 7.96 | 7.92 | 15 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-020 | 8 | 7.96 | 7.92 | 20 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-025 | 8 | 7.96 | 7.92 | 25 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-030 | 8 | 7.96 | 7.92 | 30 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-035 | 8 | 7.96 | 7.92 | 35 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-040 | 8 | 7.96 | 7.92 | 40 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-045 | 8 | 7.96 | 7.92 | 45 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-050 | 8 | 7.96 | 7.92 | 50 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-060 | 8 | 7.96 | 7.92 | 60 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-070 | 8 | 7.96 | 7.92 | 70 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-080 | 8 | 7.96 | 7.92 | 80 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-090 | 8 | 7.96 | 7.92 | 90 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-08-100 | 8 | 7.96 | 7.92 | 100 | 9.42 | 8 | 23.4 | 11.9 | 16.0 | 5.8 | 20.6 | |
| MBCCH-10-015 | 10 | 9.96 | 9.92 | 15 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-020 | 10 | 9.96 | 9.92 | 20 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-025 | 10 | 9.96 | 9.92 | 25 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-030 | 10 | 9.96 | 9.92 | 30 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-035 | 10 | 9.96 | 9.92 | 35 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-040 | 10 | 9.96 | 9.92 | 40 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-045 | 10 | 9.96 | 9.92 | 45 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-050 | 10 | 9.96 | 9.92 | 50 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-060 | 10 | 9.96 | 9.92 | 60 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-070 | 10 | 9.96 | 9.92 | 70 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-080 | 10 | 9.96 | 9.92 | 80 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-090 | 10 | 9.96 | 9.92 | 90 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-10-100 | 10 | 9.96 | 9.92 | 100 | 11.86 | 9 | 25.7 | 14.2 | 17.8 | 7.4 | 25.4 | |
| MBCCH-12-020 | 12 | 11.96 | 11.92 | 20 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-025 | 12 | 11.96 | 11.92 | 25 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-030 | 12 | 11.96 | 11.92 | 30 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-035 | 12 | 11.96 | 11.92 | 35 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-040 | 12 | 11.96 | 11.92 | 40 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-045 | 12 | 11.96 | 11.92 | 45 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-050 | 12 | 11.96 | 11.92 | 50 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-060 | 12 | 11.96 | 11.92 | 60 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-070 | 12 | 11.96 | 11.92 | 70 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-080 | 12 | 11.96 | 11.92 | 80 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-090 | 12 | 11.96 | 11.92 | 90 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 | |
| MBCCH-12-100 | 12 | 11.96 | 11.92 | 100 | 14.45 | 10 | 32.3 | 18.3 | 21.6 | 10.7 | 34.7 |
