Thrust Screws - Threaded Design - Flat Stainless Steel Cone - Inch (TST-FC)
TST-0250-FC

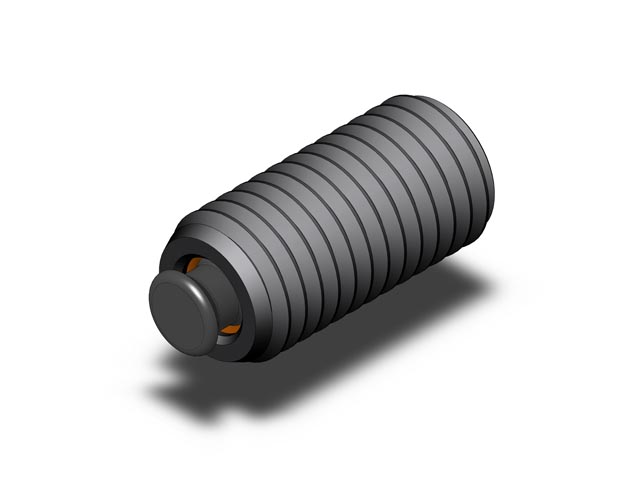

Threaded Thrust Screw - Flat Cone SS - 1/4-20 X 1/2 in

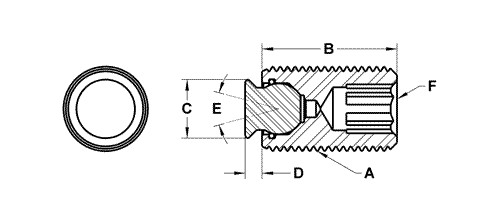

| Part # | A Thread | B Thread Length in | C Contact Diameter in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Diameter in | Load Rating lbs | Ball Only Part No. in |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TST-0230-FC | 3/8-24 | 1/2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0230X.75-FC | 3/8-24 | 3/4 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0231-FC | 3/8-24 | 1 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0231X1.5-FC | 3/8-24 | 1-1/2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0231X2-FC | 3/8-24 | 2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0231X3-FC | 3/8-24 | 3 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0250-FC | 1/4-20 | 1/2 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0251-FC | 1/4-20 | 3/4 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0251X1-FC | 1/4-20 | 1 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0280-FC | 1/4-28 | 1/2 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0281-FC | 1/4-28 | 3/4 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0281X1-FC | 1/4-28 | 1 | 9/64 | 1/16 | 30 | 1/8 | 1/8 | BUB-125-FC | — | |
| TST-0310-FC | 5/16-18 | 1/2 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0312-FC | 5/16-18 | 3/4 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0312X1.5-FC | 5/16-18 | 1-1/2 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0312X1-FC | 5/16-18 | 1 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0320-FC | 5/16-24 | 1/2 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0321-FC | 5/16-24 | 3/4 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0321X1.5-FC | 5/16-24 | 1-1/2 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0321X1-FC | 5/16-24 | 1 | 13/64 | 1/16 | 30 | 5/32 | 5/32 | BUB-156-FC | — | |
| TST-0370-FC | 3/8-16 | 1/2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0370X.75-FC | 3/8-16 | 3/4 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0375-FC | 3/8-16 | 1 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0375X1.5-FC | 3/8-16 | 1-1/2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0375X2-FC | 3/8-16 | 2 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0375X3-FC | 3/8-16 | 3 | 1/4 | 3/32 | 28 | 3/16 | 3/16 | BUB-187-FC | 1,763 | |
| TST-0500-FC | 1/2-20 | 1 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0500X1.5-FC | 1/2-20 | 1-1/2 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0500X2-FC | 1/2-20 | 2 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0500X3-FC | 1/2-20 | 3 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0503-FC | 1/2-20 | 3/4 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0510-FC | 1/2-13 | 1 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0510X1.5-FC | 1/2-13 | 1-1/2 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0510X2-FC | 1/2-13 | 2 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0510X3-FC | 1/2-13 | 3 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0513-FC | 1/2-13 | 3/4 | 11/32 | 3/32 | 28 | 1/4 | 9/32 | BUB-200-FC | 4,527 | |
| TST-0620-FC | 5/8-18 | 1 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0620X2-FC | 5/8-18 | 2 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0620X3-FC | 5/8-18 | 3 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0625-FC | 5/8-11 | 1 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0625X2-FC | 5/8-11 | 2 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0625X3-FC | 5/8-11 | 3 | 7/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-FC | 6,131 | |
| TST-0750-FC | 3/4-16 | 1 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-0750X2-FC | 3/4-16 | 2 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-0750X3-FC | 3/4-16 | 3 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-0755-FC | 3/4-10 | 1 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-0755X2-FC | 3/4-10 | 2 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-0755X3-FC | 3/4-10 | 3 | 33/64 | 1/8 | 28 | 3/8 | 1/2 | BUB-500-FC | 8,150 | |
| TST-1108-FC | 1-8 | 1 | 11/16 | 5/32 | 32 | 3/8 | 5/8 | BUB-600-FC | 14,757 | |
| TST-1108X2-FC | 1-8 | 2 | 11/16 | 5/32 | 32 | 3/8 | 5/8 | BUB-600-FC | 14,757 | |
| TST-1108X3-FC | 1-8 | 3 | 11/16 | 5/32 | 32 | 3/8 | 5/8 | BUB-600-FC | 14,757 | |
| TST-1114-FC | 1-14 | 1 | 49/64 | 5/32 | 32 | 3/8 | 3/4 | BUB-700-FC | 17,210 | |
| TST-1114X2-FC | 1-14 | 2 | 49/64 | 5/32 | 32 | 3/8 | 3/4 | BUB-700-FC | 17,210 | |
| TST-1114X3-FC | 1-14 | 3 | 49/64 | 5/32 | 32 | 3/8 | 3/4 | BUB-700-FC | 17,210 |
