Thrust Screws - Headed Design - Round Stainless Steel Ball - Inch (TSH-SB)
TSH-0310-SB

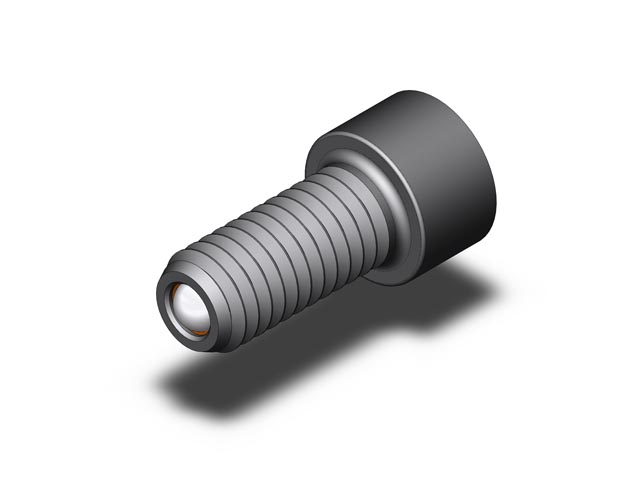

Headed Thrust Screw - Round SS Ball - 5/16-18 X 3/4 in

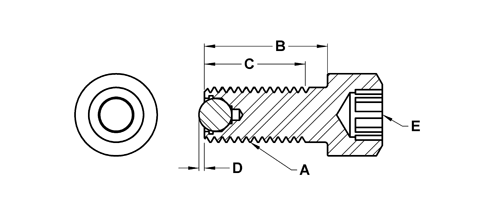

| Part # | A Thread in | B Shank in | C Thread Length in | D Standoff in | E Int Hex in | Ball Diameter in | Load Rating lbs | Ball Only Part No. in |
|
|---|---|---|---|---|---|---|---|---|---|
| TSH-0231-SB | 3/8-24 | 1 | 1 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0231X1.5-SB | 3/8-24 | 1-1/2 | 1-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0231X2.5-SB | 3/8-24 | 2-1/2 | 1-3/8 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0231X2-SB | 3/8-24 | 2 | 1-3/8 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0310-SB | 5/16-18 | 3/4 | 3/4 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0312-SB | 5/16-18 | 1 | 1 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0312X1.25-SB | 5/16-18 | 1-1/4 | 1-1/4 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0312X1.75-SB | 5/16-18 | 1-3/4 | 1-1/8 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0312X2-SB | 5/16-18 | 2 | 1-1/8 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0320-SB | 5/16-24 | 3/4 | 3/4 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0321-SB | 5/16-24 | 1 | 1 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0321X1.25-SB | 5/16-24 | 1-1/4 | 1-1/4 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0321X1.75-SB | 5/16-24 | 1-3/4 | 1-1/8 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0321X2-SB | 5/16-24 | 2 | 1-1/8 | .026 | 1/4 | 5/32 | — | — | |
| TSH-0375-SB | 3/8-16 | 1 | 1 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0375X1.5-SB | 3/8-16 | 1-1/2 | 1-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0375X2.5-SB | 3/8-16 | 2-1/2 | 1-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0375X2-SB | 3/8-16 | 2 | 1-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSH-0500X1.25-SB | 1/2-20 | 1-1/4 | 1-1/4 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0500X1.5-SB | 1/2-20 | 1-1/2 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0500X2.5-SB | 1/2-20 | 2-1/2 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0500X2-SB | 1/2-20 | 2 | 2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0500X3-SB | 1/2-20 | 3 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0510X1.25-SB | 1/2-13 | 1-1/4 | 1-1/4 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0510X1.5-SB | 1/2-13 | 1-1/2 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0510X2.5-SB | 1/2-13 | 2-1/2 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0510X2-SB | 1/2-13 | 2 | 2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0510X3-SB | 1/2-13 | 3 | 1-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSH-0620-SB | 5/8-18 | 1-1/2 | 1-1/2 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0620X2.5-SB | 5/8-18 | 2-1/2 | 1-3/4 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0620X3-SB | 5/8-18 | 3 | 1-3/4 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0625-SB | 5/8-11 | 1-1/2 | 1-1/2 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0625X2.5-SB | 5/8-11 | 2-1/2 | 1-3/4 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0625X2-SB | 5/8-11 | 2 | 2 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0625X3-SB | 5/8-11 | 3 | 1-3/4 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSH-0750X2.5-SB | 3/4-16 | 2-1/2 | 2-1/2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-0750X2-SB | 3/4-16 | 2 | 2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-0750X3-SB | 3/4-16 | 3 | 2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-0755X2.5-SB | 3/4-10 | 2-1/2 | 2-1/2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-0755X2-SB | 3/4-10 | 2 | 2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-0755X3-SB | 3/4-10 | 3 | 2 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSH-1108X2-SB | 1-8 | 2 | 2 | .175 | 3/4 | 5/8 | 14,757 | 14,757 | |
| TSH-1108X3-SB | 1-8 | 3 | 3 | .175 | 3/4 | 5/8 | 14,757 | 14,757 | |
| TSH-1108X4-SB | 1-8 | 4 | 2-1/2 | .175 | 3/4 | 5/8 | 14,757 | 14,757 | |
| TSH-1114X2-SB | 1-14 | 2 | 2 | .208 | 3/4 | 3/4 | 17,210 | 17,210 | |
| TSH-1114X3-SB | 1-14 | 3 | 3 | .208 | 3/4 | 3/4 | 17,210 | 17,210 | |
| TSH-1114X4-SB | 1-14 | 4 | 2-1/2 | .208 | 3/4 | 3/4 | 17,210 | 17,210 | |
| TSHF-0231X2.5-SB | 3/8-24 | 2-1/2 | 2-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSHF-0231X2-SB | 3/8-24 | 2 | 2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSHF-0312X1.75-SB | 5/16-18 | 1-3/4 | 1-3/4 | .026 | 1/4 | 5/32 | — | — | |
| TSHF-0312X2-SB | 5/16-18 | 2 | 2 | .026 | 1/4 | 5/32 | — | — | |
| TSHF-0321X1.75-SB | 5/16-24 | 1-3/4 | 1-3/4 | .026 | 1/4 | 5/32 | — | — | |
| TSHF-0321X2-SB | 5/16-24 | 2 | 2 | .026 | 1/4 | 5/32 | — | — | |
| TSHF-0375X2.5-SB | 3/8-16 | 2-1/2 | 2-1/2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSHF-0375X2-SB | 3/8-16 | 2 | 2 | .024 | 5/16 | 3/16 | 1,763 | 1,763 | |
| TSHF-0500X2.5-SB | 1/2-20 | 2-1/2 | 2-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSHF-0500X3-SB | 1/2-20 | 3 | 3 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSHF-0510X2.5-SB | 1/2-13 | 2-1/2 | 2-1/2 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSHF-0510X3-SB | 1/2-13 | 3 | 3 | .063 | 3/8 | 9/32 | 4,527 | 4,527 | |
| TSHF-0620X2.5-SB | 5/8-18 | 2-1/2 | 2-1/2 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSHF-0620X3-SB | 5/8-18 | 3 | 3 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSHF-0625X2.5-SB | 5/8-11 | 2-1/2 | 2-1/2 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSHF-0625X3-SB | 5/8-11 | 3 | 3 | .063 | 1/2 | 3/8 | 6,131 | 6,131 | |
| TSHF-0750X3-SB | 3/4-16 | 3 | 3 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSHF-0755X3-SB | 3/4-10 | 3 | 3 | .107 | 5/8 | 1/2 | 8,150 | 8,150 | |
| TSHF-1108X4-SB | 1-8 | 4 | 4 | .175 | 3/4 | 5/8 | 14,757 | 14,757 | |
| TSHF-1114X4-SB | 1-14 | 4 | 4 | .208 | 3/4 | 3/4 | 17,210 | 17,210 |
