Thrust Screws - Headed Design - Flat Delrin Cone - Inch (TSH-DC)
TSH-0250-DC

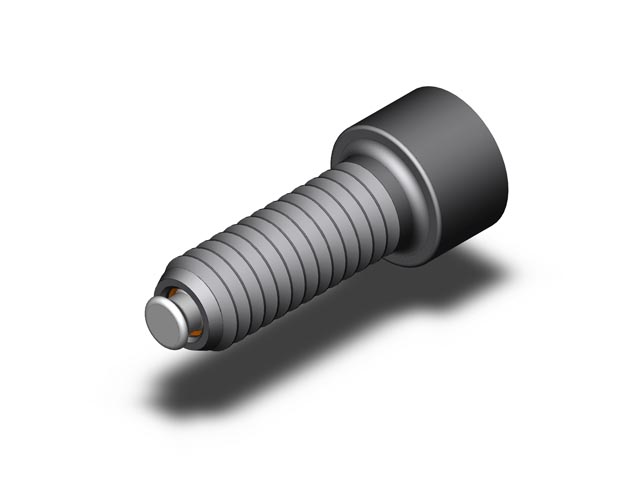

Headed Thrust Screw - Flat Cone Delrin - 1/4-20 X 3/4 in

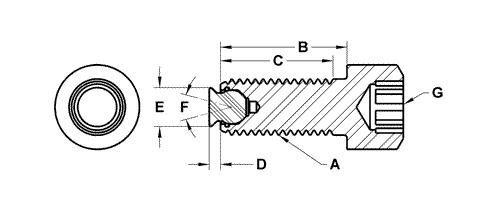

| Part # | A Thread | B Shank Length in | C Thread Length in | D Standoff in | E Contact Dia in | F Swivel Degrees | G Int Hex in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TSH-0231-DC | 3/8-24 | 1 | 1 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0231X1.5-DC | 3/8-24 | 1-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0231X2.5-DC | 3/8-24 | 2-1/2 | 1-3/8 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0231X2-DC | 3/8-24 | 2 | 1-3/8 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0250-DC | 1/4-20 | 3/4 | 3/4 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0251-DC | 1/4-20 | 1 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0251X1.5-DC | 1/4-20 | 1-1/2 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0280-DC | 1/4-28 | 3/4 | 3/4 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0281-DC | 1/4-28 | 1 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0281X1.5-DC | 1/4-28 | 1-1/2 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSH-0310-DC | 5/16-18 | 3/4 | 3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0312-DC | 5/16-18 | 1 | 1 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0312X1.25-DC | 5/16-18 | 1-1/4 | 1-1/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0312X1.75-DC | 5/16-18 | 1-3/4 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0312X2-DC | 5/16-18 | 2 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0320-DC | 5/16-24 | 3/4 | 3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0321-DC | 5/16-24 | 1 | 1 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0321X1.25-DC | 5/16-24 | 1-1/4 | 1-1/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0321X1.75-DC | 5/16-24 | 1-3/4 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0321X2-DC | 5/16-24 | 2 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSH-0375-DC | 3/8-16 | 1 | 1 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0375X1.5-DC | 3/8-16 | 1-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0375X2.5-DC | 3/8-16 | 2-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0375X2-DC | 3/8-16 | 2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSH-0500X1.25-DC | 1/2-20 | 1-1/4 | 1-1/4 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0500X1.5-DC | 1/2-20 | 1-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0500X2.5-DC | 1/2-20 | 2-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0500X2-DC | 1/2-20 | 2 | 2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0500X3-DC | 1/2-20 | 3 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0510X1.25-DC | 1/2-13 | 1-1/4 | 1-1/4 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0510X1.5-DC | 1/2-13 | 1-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0510X2.5-DC | 1/2-13 | 2-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0510X2-DC | 1/2-13 | 2 | 2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0510X3-DC | 1/2-13 | 3 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSH-0620-DC | 5/8-18 | 1-1/2 | 1-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0620X2.5-DC | 5/8-18 | 2-1/2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0620X3-DC | 5/8-18 | 3 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0625-DC | 5/8-11 | 1-1/2 | 1-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0625X2.5-DC | 5/8-11 | 2-1/2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0625X2-DC | 5/8-11 | 2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0625X3-DC | 5/8-11 | 3 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSH-0750X2.5-DC | 3/4-16 | 2-1/2 | 2-1/2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-0750X2-DC | 3/4-16 | 2 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-0750X3-DC | 3/4-16 | 3 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-0755X2.5-DC | 3/4-10 | 2-1/2 | 2-1/2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-0755X2-DC | 3/4-10 | 2 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-0755X3-DC | 3/4-10 | 3 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSH-1108X2-DC | 1-8 | 2 | 2 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-DC | |
| TSH-1108X3-DC | 1-8 | 3 | 3 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-DC | |
| TSH-1108X4-DC | 1-8 | 4 | 2-1/2 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-DC | |
| TSH-1114X2-DC | 1-14 | 2 | 2 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-DC | |
| TSH-1114X3-DC | 1-14 | 3 | 3 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-DC | |
| TSH-1114X4-DC | 1-14 | 4 | 2-1/2 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-DC | |
| TSHF-0231X2.5-DC | 3/8-24 | 2-1/2 | 2-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSHF-0231X2-DC | 3/8-24 | 2 | 2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSHF-0251X1.5-DC | 1/4-20 | 1-1/2 | 1-1/2 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSHF-0281X1.5-DC | 1/4-28 | 1-1/2 | 1-1/2 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-DC | |
| TSHF-0312X1.75-DC | 5/16-18 | 1-3/4 | 1-3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSHF-0312X2-DC | 5/16-18 | 2 | 2 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSHF-0321X1.75-DC | 5/16-24 | 1-3/4 | 1-3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSHF-0321X2-DC | 5/16-24 | 2 | 2 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-DC | |
| TSHF-0375X2.5-DC | 3/8-16 | 2-1/2 | 2-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSHF-0375X2-DC | 3/8-16 | 2 | 2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-DC | |
| TSHF-0500X2.5-DC | 1/2-20 | 2-1/2 | 2-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSHF-0500X3-DC | 1/2-20 | 3 | 3 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSHF-0510X2.5-DC | 1/2-13 | 2-1/2 | 2-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSHF-0510X3-DC | 1/2-13 | 3 | 3 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-DC | |
| TSHF-0620X2.5-DC | 5/8-18 | 2-1/2 | 2-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSHF-0620X3-DC | 5/8-18 | 3 | 3 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSHF-0625X2.5-DC | 5/8-11 | 2-1/2 | 2-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSHF-0625X3-DC | 5/8-11 | 3 | 3 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-DC | |
| TSHF-0750X3-DC | 3/4-16 | 3 | 3 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSHF-0755X3-DC | 3/4-10 | 3 | 3 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-DC | |
| TSHF-1108X4-DC | 1-8 | 4 | 4 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-DC | |
| TSHF-1114X4-DC | 1-14 | 4 | 4 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-DC |
