Thrust Screws - Headed Design - Serrated Tool Steel Ball - Inch (TSH-S)
TSH-0375-S

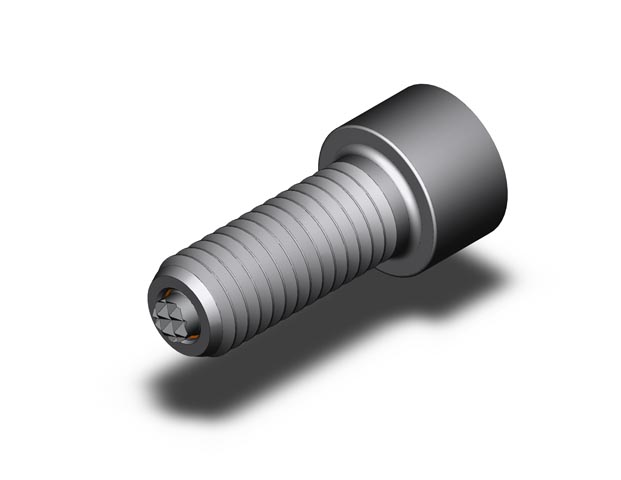

Headed Thrust Screw - Serrated Steel Ball - 3/8-16 X 1 in

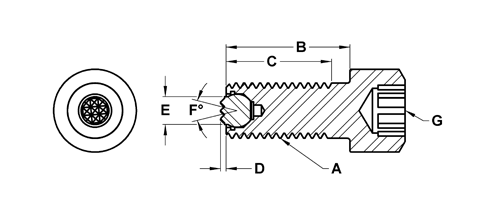

| Part # | A Thread | B Shank Length in | C Thread Length in | D Standoff in | E Contact Dia in | F Swivel Degrees | G Int Hex in | Ball Dia in | Ball Only Part No. | Tooth Pattern Degrees | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSH-0231-S | 3/8-24 | 1 | 1 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0231X1.5-S | 3/8-24 | 1-1/2 | 1-1/2 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0231X2.5-S | 3/8-24 | 2-1/2 | 1-1/4 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0231X2-S | 3/8-24 | 2 | 1-1/4 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0375-S | 3/8-16 | 1 | 1 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0375X1.5-S | 3/8-16 | 1-1/2 | 1-1/2 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0375X2.5-S | 3/8-16 | 2-1/2 | 1-1/4 | 1/16 | 5/32 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0375X2-S | 3/8-16 | 2 | 1-1/4 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSH-0500X1.25-S | 1/2-20 | 1-1/4 | 1-1/4 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0500X1.5-S | 1/2-20 | 1-1/2 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0500X2.5-S | 1/2-20 | 2-1/2 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0500X2-S | 1/2-20 | 2 | 2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0500X3-S | 1/2-20 | 3 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0510X1.25-S | 1/2-13 | 1-1/4 | 1-1/4 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0510X1.5-S | 1/2-13 | 1-1/2 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0510X2.5-S | 1/2-13 | 2-1/2 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0510X2-S | 1/2-13 | 2 | 2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0510X3-S | 1/2-13 | 3 | 1-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSH-0620-S | 5/8-18 | 1-1/2 | 1-1/2 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0620X2.5-S | 5/8-18 | 2-1/2 | 1-3/4 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0620X2-S | 5/8-18 | 2 | 2 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0620X3-S | 5/8-18 | 3 | 1-3/4 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0625-S | 5/8-11 | 1-1/2 | 1-3/4 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0625X2.5-S | 5/8-11 | 2-1/2 | 1-3/4 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0625X2-S | 5/8-11 | 2 | 2 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0625X3-S | 5/8-11 | 3 | 1-3/4 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSH-0750X2.5-S | 3/4-16 | 2-1/2 | 2-1/2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-0750X2-S | 3/4-16 | 2 | 2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-0750X3-S | 3/4-16 | 3 | 2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-0755X2.5-S | 3/4-10 | 2-1/2 | 2-1/2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-0755X2-S | 3/4-10 | 2 | 2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-0755X3-S | 3/4-10 | 3 | 2-1/2 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSH-1108X2-S | 1-8 | 2 | 2 | 1/8 | 1/2 | 40 | 3/4 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TSH-1108X3-S | 1-8 | 3 | 3 | 1/8 | 1/2 | 40 | 3/4 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TSH-1108X4-S | 1-8 | 4 | 2-1/2 | 1/8 | 1/2 | 40 | 3/4 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TSH-1114X2-S | 1-14 | 2 | 2 | 1/8 | 5/8 | 34 | 3/4 | 3/4 | BUB-700-S | Fine | 17,210 | |
| TSH-1114X3-S | 1-14 | 3 | 3 | 1/8 | 5/8 | 34 | 3/4 | 3/4 | BUB-700-S | Fine | 17,210 | |
| TSH-1114X4-S | 1-14 | 4 | 2-1/2 | 1/8 | 5/8 | 34 | 3/4 | 3/4 | BUB-700-S | Fine | 17,210 | |
| TSHF-0231X2.5-S | 3/8-24 | 2-1/2 | 2-1/2 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSHF-0231X2-S | 3/8-24 | 2 | 2 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSHF-0375X2.5-S | 3/8-16 | 2-1/2 | 2-1/2 | 1/16 | 5/32 | 28 | 3/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSHF-0375X2-S | 3/8-16 | 2 | 2 | 1/16 | 5/32 | 28 | 5/16 | 3/16 | BUB-187-S | SF | 1,763 | |
| TSHF-0500X2.5-S | 1/2-20 | 2-1/2 | 2-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSHF-0500X3-S | 1/2-20 | 3 | 3 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSHF-0510X2.5-S | 1/2-13 | 2-1/2 | 2-1/2 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSHF-0510X3-S | 1/2-13 | 3 | 3 | 1/16 | 1/4 | 28 | 3/8 | 9/32 | BUB-200-S | SF | 4,575 | |
| TSHF-0620X2.5-S | 5/8-18 | 2-1/2 | 2-1/2 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSHF-0620X3-S | 5/8-18 | 3 | 3 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSHF-0625X2.5-S | 5/8-11 | 2-1/2 | 2-1/2 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSHF-0625X3-S | 5/8-11 | 3 | 3 | 1/16 | 5/16 | 28 | 1/2 | 3/8 | BUB-300-S | EF | 6,131 | |
| TSHF-0750X3-S | 3/4-16 | 3 | 3 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSHF-0755X3-S | 3/4-10 | 3 | 3 | 1/8 | 3/8 | 40 | 5/8 | 1/2 | BUB-500-S | EF | 8,150 | |
| TSHF-1108X4-S | 1-8 | 4 | 4 | 1/8 | 1/2 | 40 | 3/4 | 5/8 | BUB-600-S | Fine | 14,757 | |
| TSHF-1114X4-S | 1-14 | 4 | 4 | 1/8 | 5/8 | 34 | 3/4 | 3/4 | BUB-700-S | Fine | 17,210 |
