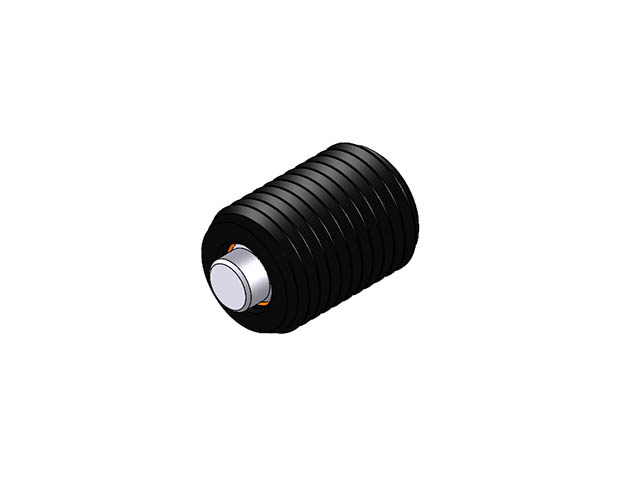

Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (TBU-F)
TBU-0370-F
Threaded Design Swivot - 3/8-16 X 1/2 - Flat

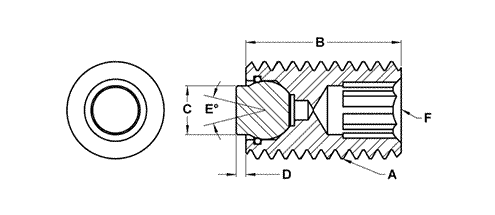

| Part # | A Thread in | B Thread Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Dia in | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TBU-0230-F | 3/8-24 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0231-F | 3/8-24 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0231X2-F | 3/8-24 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0231X3-F | 3/8-24 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0370-F | 3/8-16 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0375-F | 3/8-16 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0375X2-F | 3/8-16 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0375X3-F | 3/8-16 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-F | 1,763 | |
| TBU-0500-F | 1/2-20 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0500-F-T | 1/2-20 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0500X2-F | 1/2-20 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0500X2-F-T | 1/2-20 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0500X3-F | 1/2-20 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0500X3-F-T | 1/2-20 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0503-F | 1/2-20 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0503-F-T | 1/2-20 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0510-F | 1/2-13 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0510-F-T | 1/2-13 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0510X2-F | 1/2-13 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0510X2-F-T | 1/2-13 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0510X3-F | 1/2-13 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0510X3-F-T | 1/2-13 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0513-F | 1/2-13 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-F | 4,527 | |
| TBU-0513-F-T | 1/2-13 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-F-T | 4,527 | |
| TBU-0620-F | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0620-F-T | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0620X2-F | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0620X2-F-T | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0620X3-F | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0620X3-F-T | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0625-F | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0625-F-T | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0625X2-F | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0625X2-F-T | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0625X3-F | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-F | 6,131 | |
| TBU-0625X3-F-T | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-F-T | 6,131 | |
| TBU-0750-F | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0750-F-T | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-0750X2-F | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0750X2-F-T | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-0750X3-F | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0750X3-F-T | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-0755-F | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0755-F-T | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-0755X2-F | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0755X2-F-T | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-0755X3-F | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-F | 8,150 | |
| TBU-0755X3-F-T | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-F-T | 8,150 | |
| TBU-1108-F | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-F | 14,757 | |
| TBU-1108-F-T | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-F-T | 14,757 | |
| TBU-1108X2-F | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-F | 14,757 | |
| TBU-1108X2-F-T | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-F-T | 14,757 | |
| TBU-1108X3-F | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-F | 14,757 | |
| TBU-1108X3-F-T | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-F-T | 14,757 | |
| TBU-1114-F | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-F | 17,210 | |
| TBU-1114-F-T | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-F-T | 17,210 | |
| TBU-1114X2-F | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-F | 17,210 | |
| TBU-1114X2-F-T | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-F-T | 17,210 | |
| TBU-1114X3-F | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-F | 17,210 | |
| TBU-1114X3-F-T | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-F-T | 17,210 |
