17-4 Stainless Shank - Aluminum Handle (Inch)

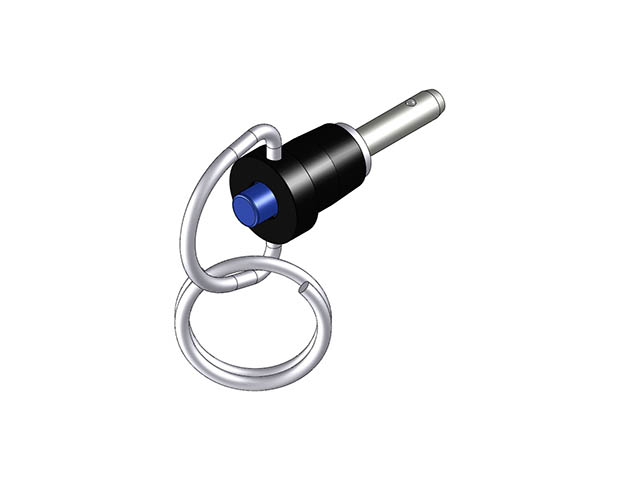

Quick Release Ball Lock Pin - Ring Handle - 17-4 SS Shank - Aluminum Handle - Inch (RACH)

RACH-18-050
Ring Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in

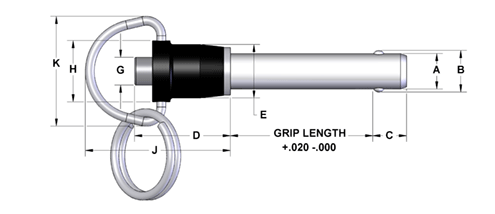

Part #	Nominal Diameter in	A Max in	A Min in	Grip Length in	B in	C in	D in	E in	G in	H in	J in	K in
▶ RACH-18-050	3/16	0.1885	0.1870	0.50	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-075	3/16	0.1885	0.1870	0.75	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-100	3/16	0.1885	0.1870	1.00	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-125	3/16	0.1885	0.1870	1.25	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-150	3/16	0.1885	0.1870	1.50	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-175	3/16	0.1885	0.1870	1.75	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-200	3/16	0.1885	0.1870	2.00	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-250	3/16	0.1885	0.1870	2.50	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-300	3/16	0.1885	0.1870	3.00	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-350	3/16	0.1885	0.1870	3.50	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-18-400	3/16	0.1885	0.1870	4.00	0.220	0.260	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-050	1/4	0.2485	0.2470	0.50	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-075	1/4	0.2485	0.2470	0.75	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-100	1/4	0.2485	0.2470	1.00	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-125	1/4	0.2485	0.2470	1.25	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-150	1/4	0.2485	0.2470	1.50	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-175	1/4	0.2485	0.2470	1.75	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-200	1/4	0.2485	0.2470	2.00	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-250	1/4	0.2485	0.2470	2.50	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-300	1/4	0.2485	0.2470	3.00	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-350	1/4	0.2485	0.2470	3.50	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-25-400	1/4	0.2485	0.2470	4.00	0.289	0.290	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-050	5/16	0.3110	0.3095	0.50	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-075	5/16	0.3110	0.3095	0.75	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-100	5/16	0.3110	0.3095	1.00	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-125	5/16	0.3110	0.3095	1.25	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-150	5/16	0.3110	0.3095	1.50	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-175	5/16	0.3110	0.3095	1.75	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-200	5/16	0.3110	0.3095	2.00	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-250	5/16	0.3110	0.3095	2.50	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-300	5/16	0.3110	0.3095	3.00	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-350	5/16	0.3110	0.3095	3.50	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-31-400	5/16	0.3110	0.3095	4.00	0.375	0.330	0.91	0.47	0.23	0.59	1.45	1.16
▶ RACH-37-050	3/8	0.3735	0.3720	0.50	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-075	3/8	0.3735	0.3720	0.75	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-100	3/8	0.3735	0.3720	1.00	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-125	3/8	0.3735	0.3720	1.25	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-150	3/8	0.3735	0.3720	1.50	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-175	3/8	0.3735	0.3720	1.75	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-200	3/8	0.3735	0.3720	2.00	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-250	3/8	0.3735	0.3720	2.50	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-300	3/8	0.3735	0.3720	3.00	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-350	3/8	0.3735	0.3720	3.50	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-37-400	3/8	0.3735	0.3720	4.00	0.440	0.365	1.00	0.56	0.29	0.65	1.52	1.16
▶ RACH-50-100	1/2	0.4985	0.4970	1.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-125	1/2	0.4985	0.4970	1.25	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-150	1/2	0.4985	0.4970	1.50	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-175	1/2	0.4985	0.4970	1.75	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-200	1/2	0.4985	0.4970	2.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-250	1/2	0.4985	0.4970	2.50	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-300	1/2	0.4985	0.4970	3.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-350	1/2	0.4985	0.4970	3.50	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-400	1/2	0.4985	0.4970	4.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-450	1/2	0.4985	0.4970	4.50	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-500	1/2	0.4985	0.4970	5.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-550	1/2	0.4985	0.4970	5.50	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-50-600	1/2	0.4985	0.4970	6.00	0.594	0.460	1.27	0.72	0.42	0.81	1.88	1.43
▶ RACH-62-150	5/8	0.6235	0.6220	1.50	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-175	5/8	0.6235	0.6220	1.75	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-200	5/8	0.6235	0.6220	2.00	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-250	5/8	0.6235	0.6220	2.50	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-300	5/8	0.6235	0.6220	3.00	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-350	5/8	0.6235	0.6220	3.50	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-400	5/8	0.6235	0.6220	4.00	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-450	5/8	0.6235	0.6220	4.50	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-500	5/8	0.6235	0.6220	5.00	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-550	5/8	0.6235	0.6220	5.50	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
▶ RACH-62-600	5/8	0.6235	0.6220	6.00	0.750	0.580	1.65	0.94	0.54	1.06	2.57	1.72
