Home > Rollers & Bumpers > Bumpers > Square & Rect. - Steel Plate

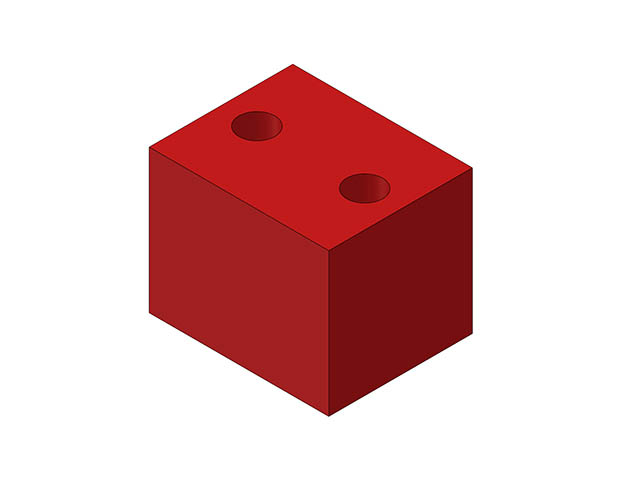

Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 2 in X 2 in

Part Number: RB-2025-C-UR
Weight: 0 lbs 7 ozs
Length - Overall: 2-1/2
Material: Urethane
Width - Overall: 2
Height - Overall: 2
Length - Edge to Mounting Hole Centers: 1-1/2
Length - between Mounting Hole Centers: 1
Width - Edge to Mounting Hole Centers: 1/2
For SHCS - Mounting (clearance): 5/16
Durometer: 80

Part:RB-2025-C-UR

RB-2025-C-UR

Download

Download CAD models here
