Home > Rollers & Bumpers > Bumpers > Square & Rect. - Steel Plate

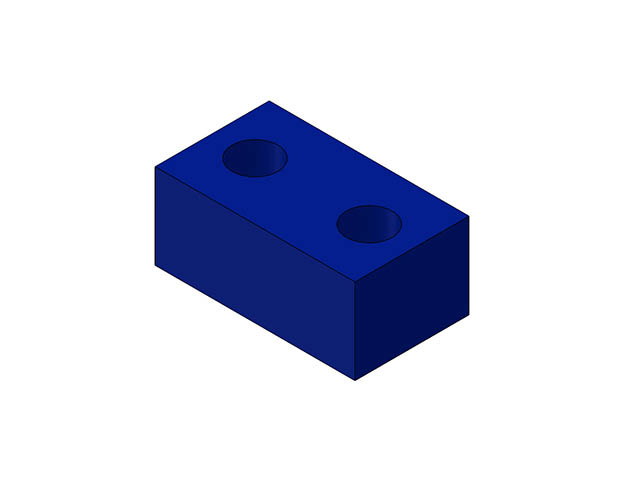

Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/4 in

Part Number: RB-1175-60UR
Weight: 0 lbs 1 ozs
Length - Overall: 1-3/4
Material: Urethane
Width - Overall: 1
Height - Overall: 3/4
Length - Edge to Mounting Hole Centers: 1
Length - between Mounting Hole Centers: 1/2
Width - Edge to Mounting Hole Centers: 3/8
For SHCS - Mounting (clearance): 1/4 (6mm)
Durometer: 60

Part:RB-1175-60UR

RB-1175-60UR

Download

Download CAD models here
