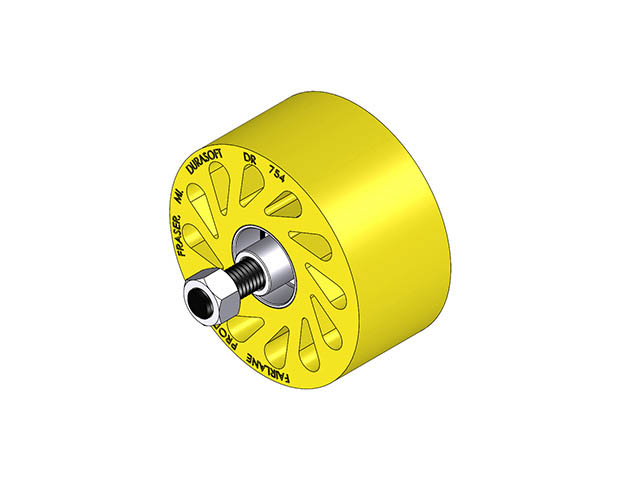

DuraSoft® Roller - Standard Stud Mount - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide

Part Number: DR-754-35UR-C
Weight: 1 lbs 4 ozs
Diameter - Overall: 4.00
Material: Urethane
Width - Roller: 1.94
Diameter - Inside - Bearing Mount: 1/2-13 x 2.75 SHCS
Length - Stud to Roller: 1.41
Height - Standoff - Spacer: .25
No. of Bearings: 1
Bearing Type: C
Durometer: 35

Part:DR-754-35UR-C

DR-754-35UR-C

Download

Download CAD models here
