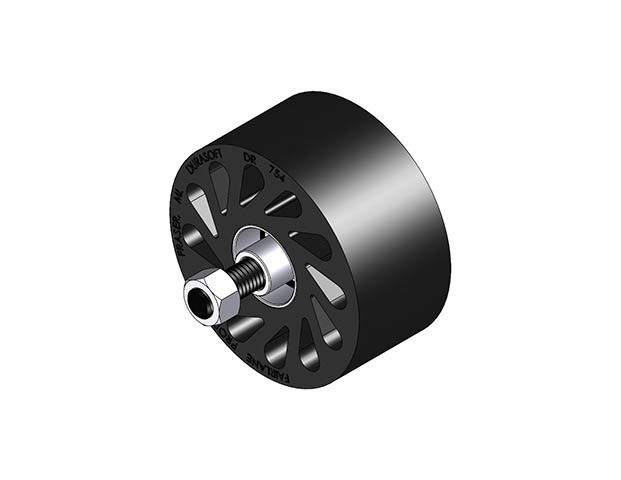

DuraSoft® Roller - Standard Stud Mount - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide

Part Number: DR-754-20-C
Weight: 1 lbs 3 ozs
Diameter - Overall: 4.00
Material: Neoprene
Width - Roller: 1.94
Diameter - Inside - Bearing Mount: 1/2-13 x 2.75 SHCS
Length - Stud to Roller: 1.41
Height - Standoff - Spacer: .25
No. of Bearings: 1
Bearing Type: C
Durometer: 20

Part:DR-754-20-C

DR-754-20-C

Download

Download CAD models here
