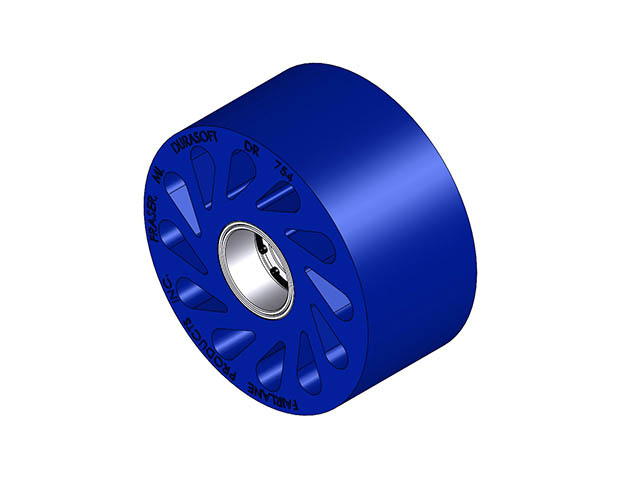

DuraSoft® Roller - Precision Sealed Bearing Mount - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide

Part Number: DR-754-60UR-BPC
Weight: 0 lbs 14 ozs
Diameter - Overall: 4.00
Material: Urethane
Width - Roller: 1.94
Diameter - Inside - Bearing Mount: .4997/.5000
Diameter - Inside - Roller: 1.1247/1.1250
Width - Bearing Mount: .7406/.7500
No. of Bearings: 2
Bearing Type: G
Durometer: 60

Part:DR-754-60UR-BPC

DR-754-60UR-BPC

Download

Download CAD models here
